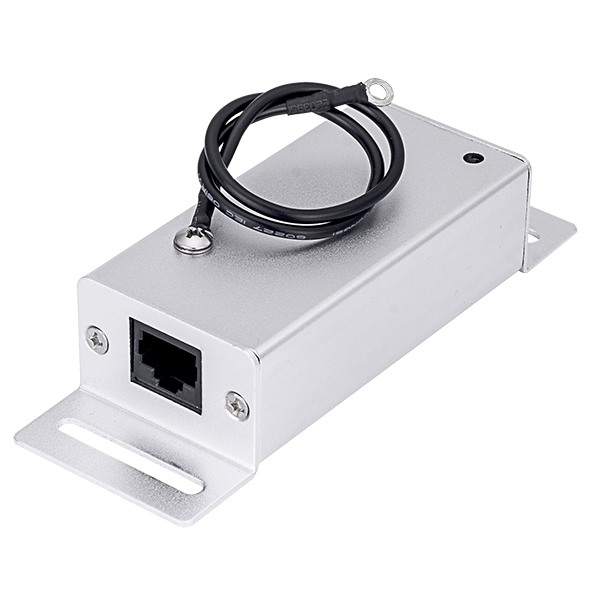

AT-PSP-001
The AT-PSP-001 is a surge protector with 8KA, 16KV.
The AT-PSP-001 absorbs lightning and power-induced voltage spikes before they reach connected equipment, rated to discharge 8KA, 16KV. Rated for extended-temperature operation down to -40°C.
- Number of Ports: 1
- Pass Through Data Rates: 10/100/1000 Mbps
- Max Discharge Current (8/20us, 1KA per Line): 8KA, 16KV
- Maximum Operation DC Voltage: 60VDC
- Maximum Operation DC Current: 1A for 2 pair, 2A for 4 pair, 95W maximum
- Common Mode Protection Level (10/700us): 20KV
- Differential Mode Protection Level (10/700us): 4KV
- Clamping Voltage (Line to GND): 600V
- Clamping Voltage (Line to Line): 20V
- Insertion Loss @ 10MHz/100MHz: 1db
- Return Loss @ 10MHz/100MHz: -20db
- Response Time: 5ns
- Dimensions (WxHxD): 25 x 40 x 80 mm
- Weight: 02.KG
- Connectors: RJ45 x 2
- Operating Temperature: -40 °C ~ 85 °C (-40°F ~ 185°F)
- Storage Temperature: -40 °C ~ 85 °C (-40°F ~ 185°F)
- Operating Humidity: 5% ~ 95% non-condensing
- EMC: CE, FCC
- Safety: EN60950-1, IEC60950-1
- Surge: ITU-T K.21 IEC-61643-21 IEC-61000-4-5 TIA-968-A (FCC Part68)
