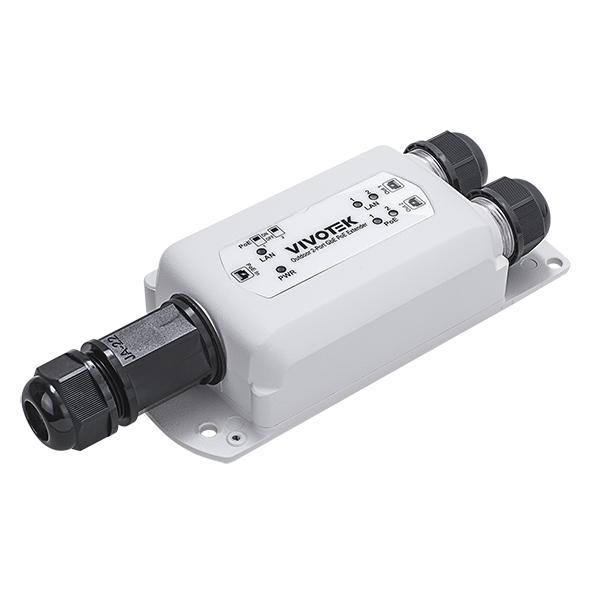

AP-GXC-0250
The AP-GXC-0250 is an outdoor 2-Port GE PoE extender with 48~55VDC, max. 68W Passive PoE.
The AP-GXC-0250 extends PoE up to 300m beyond a standard cable run, powering a device at the far end with no local power supply needed. 6KV surge protection guards the connected equipment, rated for extended-temperature operation down to -40°C, and its housing is rated for direct outdoor installation.
- Extension Distance: 2 Units, Daisy-chain Installation Up to 300M Extension (No Local Power Required)
- PoE Input Power: 802.3 af/at/bt & PoH up to 95W
- PoE output Power: 48~55VDC, max. 68W Passive PoE
- PD Power Pin Assignment: 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-)
- PSE Power Pin Assignment: 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-)
- PD Gigabit Ethernet (RJ45): 1
- PSE Gigabit Ethernet (RJ45): 2
- PSE Power On/Off Dip Switch: Supported
- Surge Protection /PoE Port: 6KV
- Total Gigabit Ethernet Port: 3
- Mac Table: 2K
- Bandwidth: 10/100/1000 Mbps
- Switching Capacity: 6 Gbps
- Auto-MDI/MDI-X, Auto-Negotiation: Supported
- Dimensions (WxHxD): 167.5 x 72.8 x 39.8 mm
- Weight: 0.36 KG
- LED Indicators: Power, LAN, PoE
- Operating Temperature: -40°C ~ 65°C (-40°F ~ 149°F)
- Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F)
- Operating Humidity: 10% to 90% non-condensing
- Waterproof: IP67
- Vandal Proof: IK10
- EMC: CE, FCC, VCCI, C-Tick
