AP-GIC-011A-030

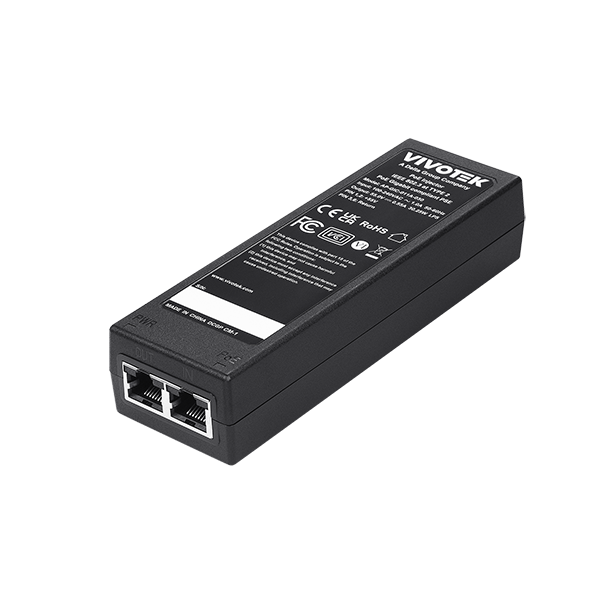

The AP-GIC-011A-030 is a 1xGE 30W af/at PoE injector with 30W.
The AP-GIC-011A-030 adds up to 30W of PoE power to a plain Ethernet link, supporting the 802.3af/at standard.
- Gigabit Ethernet 10/100/1000Mbps (Data in): 1
- IEEE 802.3 10-BASE-T (Ethernet): Supported
- IEEE 802.3u 100-BASE-TX (Fast Ethernet): Supported
- IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet): Supported
- IEEE 802.3 af/at/bt: Supported
- Number of PoE Output Port: 1
- Max. PoE Output Power: 30W
- IEEE PoE Standard: 802.3af/at
- Over Current Protection: Supported
- Circuit Shorting Protection: Supported
- Total PoE Power Budget: 30W
- Power Pin Assignment: 1, 2 (+)/3, 6 (-)
- PoE PD Auto Detection: Supported
- Input Voltage Range: 100 ~ 240VAC / 50 ~ 60Hz
- Output Voltage/Current: 55VDC/0.55A
- Electrostatic Discharge (ESD) Per IEC-61000-4-2: Contact discharge: ±6KV; Air discharge: ±8KV; Criterion B
- MTBF: 200k hours of continuous operation at 25°C
- Dimensions: 140 (L) x 45.5 (W) x 30 (H) mm
- Weight: 0.14 kg
- Operating Temperature: -10°C ~ 45°C (14°F ~ 133°F)
- Storage Temperature: -25°C ~ 65°C (-13°F ~ 149°F)
- Humidity: Operating: 5 ~ 90%; Storage: 5 ~ 90% (Non-condensing)
- Safety Certifications: CE, CB, FCC, VCCI
- Warranty: 24 Months
