AM-71B_V02

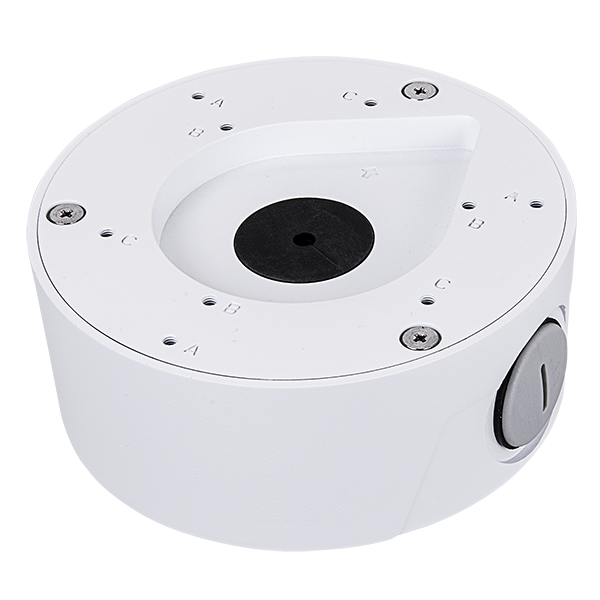

The AM-71B_V02 is a Vivotek mounting bracket, compatible with 26 VIVOTEK camera models.
The AM-71B_V02 is a Vivotek mounting bracket, compatible with 26 VIVOTEK camera models.
- P/N: VIO100220401 (V02)
- Material: Aluminium Alloy
- Colour: White
- Pipe Thread: PF 3/4”
- Casing: IP66 (with supported cameras), IP67 (with FD9389 series)
- Dimensions: Ø138 x 55 mm
- Weight: 736g
- Box Dimension: 217 (L) x 174 (W) x 94 (H) mm (1pc)
- Box Weight: 930g
- Carton Dimension: 490 (L) x 367 (W) x 252 (H) mm (10pcs)
- Carton Weight: 10, 330g
- Supported Models: V01: FD9189-H(T)-V2, FD9360-H, FD9368-HTV, FD9380-H, FD9388-HTV, FD9389-(E)HV, FD9389-(E)HMV, FD9389-(E)HTV, FD9389-EH(T)V-V2, IT9388-HT; v02:FD9189-H(T)-V2, FD9360-H, FD9368-HTV, FD9380-H, FD9388-HTV, FD9389-EH(T)V-V2, IT9388-HT, IT9389-H-V2, FD9383-H(T)V, IT9383-H(T)VW, FD9199-H, FD9189-H-V3, FD9399-EHV, FD9399-EHTV, FD9389-EHV-V3, FD9389-EHTV-V3
