AM-52E

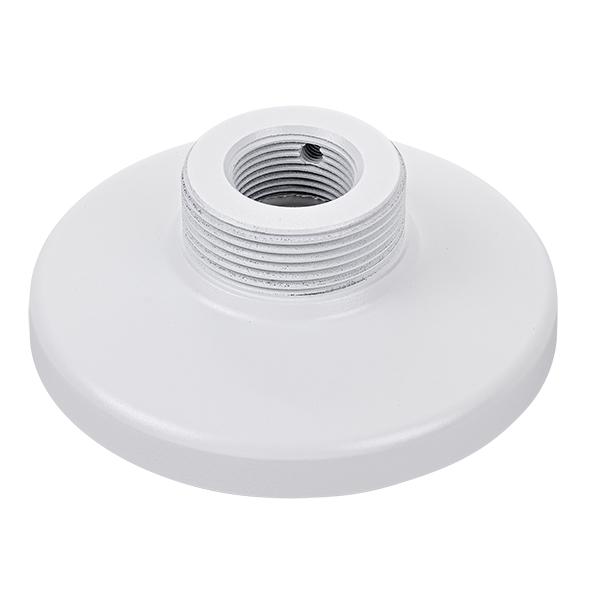

The AM-52E is a Vivotek mounting bracket, compatible with 19 VIVOTEK camera models.
The AM-52E is a Vivotek mounting bracket, compatible with 19 VIVOTEK camera models.
- P/N: 100217700G (V01); 100217701G (V02)
- Material: Aluminium Alloy
- Colour: White
- Pipe Thread: 3/4“ NPT Female & 1-1/2“ PS Male
- Dimensions: Ø115 x 41.5 mm
- Weight: 244g
- Box Dimension: 171 (L) x 125 (W) x 66 (H) mm (1pc)
- Box Weight: 344g
- Carton Dimension: 531 (L) x 351 (W) x 195 (H) mm (20pcs)
- Carton Weight: 7420g
- Supported Models: V01: IT9389-H, IT9389-HT, IT9360-H, IT9380-H, IT9388-HT, FD9360-H, FD9380-H; V02: IT9389-H, IT9389-HT, IT9360-H, IT9380-H, IT9388-HT, FD9360-H, FD9380-H, FD9369, FD9383-HV, IT9383-H(T)VW, FD9199-H, FD9189-H-V3
