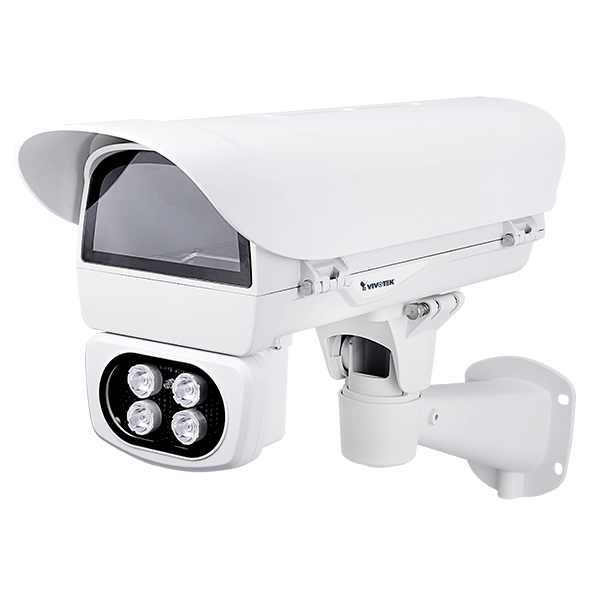

AE-244
The AE-244 is a Vivotek camera enclosure with PoE 802.3at input, a built-in 6W IR illuminator, window heater and fan.
The AE-244 is a Vivotek camera enclosure.
- Input Voltage: IEEE 802.3 at PoE 50~57VDC
- Power Output: PoE 802.3 at x1; DC 12V x1
- Max. Output Power Budget: 30W
- Power Consumption: Window Heater: 10W; Fan: 2W; Others: 2W; IR LEDs: 6W
- IR LEDs: Fixed IR 6W, 25°, 50m
- Operating Temperature: -20°C ~ 65°C (-4°F ~ 149°F); -20°C ~ 50°C (-4°F ~ 122°F) (IR ON)
- Windows Heater ON/OFF: ≤30°C (86°F) ON; ≥ 35°C (95°F) OFF
- Fan ON/OFF: ≥40°C ON; ≤ 35°C OFF
- Waterproof IP Rating: IP68
- Vandal Proof: IK10; Impact Rated on Cast; Aluminium Housing
- Supported Cameras: All VIVOTEK Box Camera
- Included Accessories: Quick Installation Guide, Screw Kit, Wall Bracket (AM-21E), Sun Shield (AE-2S1)
- Mount Type: Wall Mount, Ceiling Mount, Corner Mount, Standing Mount
