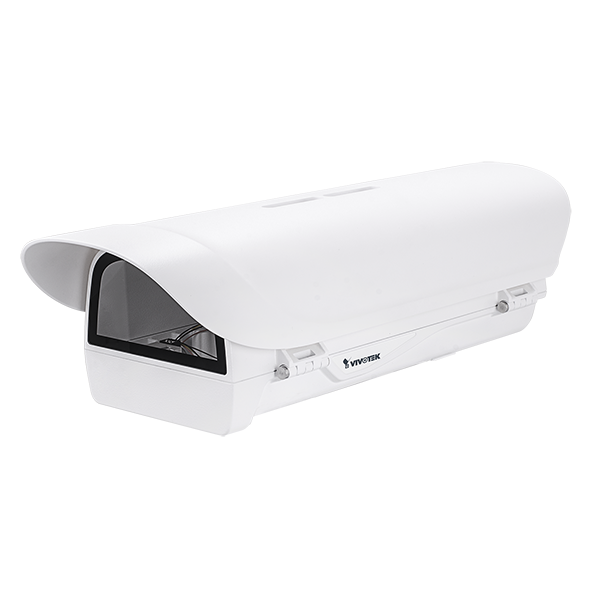

AE-23L
The AE-23L is a Vivotek camera enclosure with an 80W power budget and a built-in window heater and fan.
The AE-23L is a Vivotek camera enclosure.
- Input Voltage: 24V AC/DC
- Power Output: AC/DC 24V x1; DC 12V x1
- Max. Output Power Budget: 80W
- Power Consumption: Window Heater: 10W; Fan: 2W; Others: 2W
- Operating Temperature: -20°C ~ 65°C (-4°F ~ 149°F)
- Windows Heater ON/OFF: ≤30°C (86°F) ON; ≥ 35°C (95°F) OFF
- Fan ON/OFF: ≥40°C ON; ≤ 35°C OFF
- Waterproof IP Rating: IP68
- Vandal Proof: IK10; Impact Rated on Cast; Aluminium Housing
- Supported Cameras: IP9165-LPC
- Included Accessories: Quick Installation Guide, Screw Kit, Sun Shield (AE-2S1)
- Mount Type: Wall Mount; Ceiling Mount; Corner Mount; Standing Mount
