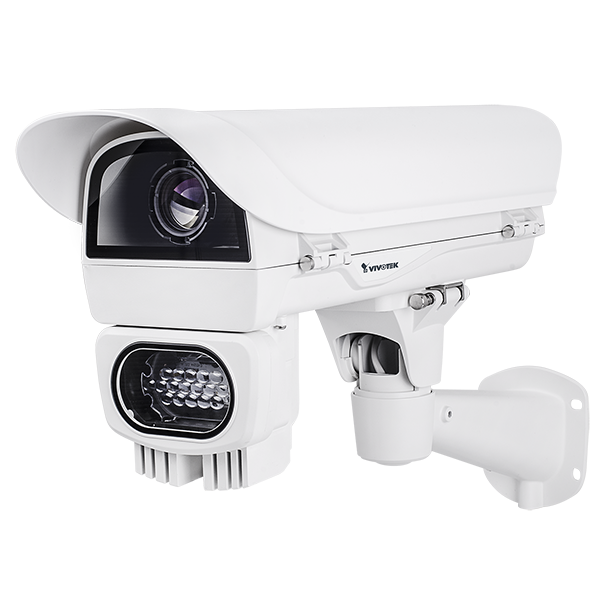

AE-23A-P
The AE-23A-P is a Vivotek camera enclosure with a 48W VAIR LED illuminator effective to 350m, window heater and fan.
The AE-23A-P is a Vivotek camera enclosure.
- Input Voltage: 24V AC/DC* (requiring 26~28VDC input for Snap-in IR)
- Power Output: AC/DC 24V x1; DC 12V x1
- Max. Output Power Budget: 80W
- Power Consumption: Window Heater: 10W; Fan: 2W; Others: 2W; IR LEDs: 48W
- IR LEDs: VAIR LED 48W, 10 ~ 40°, 150 ~ 350 m
- Operating Temperature: -20°C ~ 65°C (-4°F ~ 149°F); -20°C ~ 50°C (-4°F ~ 122°F) (IR ON)
- Windows Heater ON/OFF: ≤30°C (86°F) ON; ≥ 35°C (95°F) OFF
- Fan ON/OFF: ≥40°C ON; ≤ 35°C OFF
- Waterproof IP Rating: IP68
- Vandal Proof: IK10; Impact Rated on Cast; Aluminium Housing
- Supported Cameras: All VIVOTEK Box Cameras
- Included Accessories: Quick Installation Guide, Screw Kit, Wall Bracket (AM-21E), Sun Shield (AE-2S1), 48W IR (AI-109)
- Mount Type: Wall Mount; Ceiling Mount; Corner Mount; Standing Mount
