AE-238

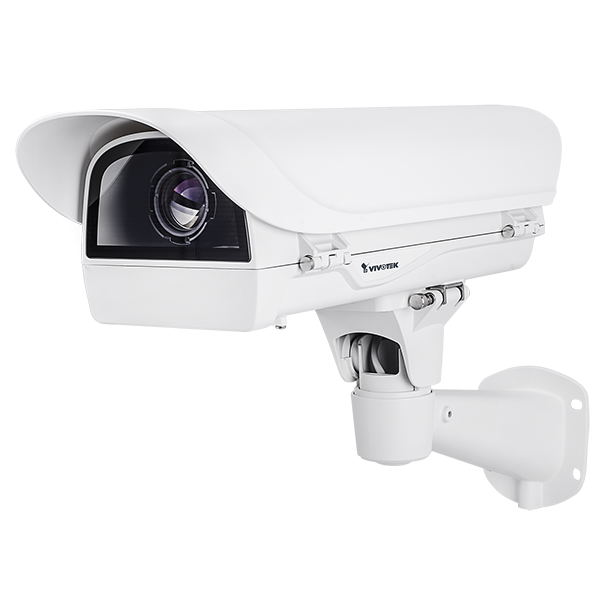

The AE-238 is a Vivotek outdoor camera enclosure with an IP68, IK10-rated housing, window heater and fan, for all VIVOTEK box cameras.
The AE-238 is a Vivotek camera enclosure.
- Input Voltage: AC/DC 24V
- Power Output: AC/DC 24V x1; DC 12V x1
- Max. Output Power Budget: 30W
- Power Consumption: Window Heater: 10W; Fan: 2W; Others: 2W
- Operating Temperature: -20°C ~ 65°C (-4°F ~ 149°F)
- Windows Heater ON/OFF: ≤ 30°C (86°F) ON; ≥ 35°C (95°F) OFF
- Fan ON/OFF: ≥ 40°C (104°F) ON; ≤ 35°C (95°F) OFF
- Waterproof IP Rating: IP68
- Vandal Proof: IK10; Impact Rated on Cast; Aluminium Housing
- Supported Cameras: All VIVOTEK Box Cameras
- Included Accessories: Quick Installation Guide, Screw Kit, Wall Mount Bracket (AM-21E), Sun Shield (AE-2S1)
- Mount Type: Wall Mount; Ceiling Mount; Corner Mount; Standing Mount
