80GHz 5Gbps up to 2km

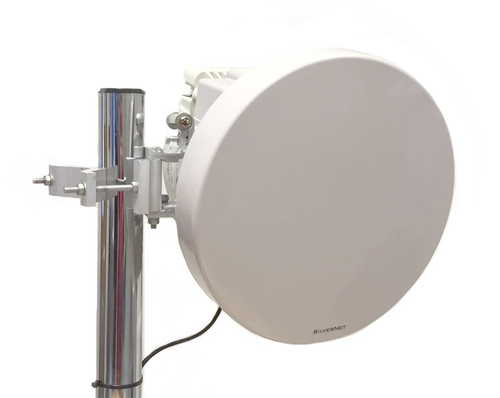

The SIL FDD 805G-30-PCP is an all-outdoor, full IP, next-generation millimetre wave radio link operating in the 71-76/81-86GHz E-Band.
The SIL FDD 805G-30-PCP doubles throughput to 5Gbps over links up to 2km, using both the 71-76GHz and 81-86GHz halves of the E-Band together rather than one, on a 30cm antenna. It comes with two 2.5Gbps Fibre ports as standard, aimed at carrier-class mobile backhaul, enterprise and ISP links in urban settings. It runs on the same synchronisation and Ethernet/IP feature set as the rest of the SilverNet 80GHz Backhaul range, and pairs with the free SilverView network monitoring software.
Note: the 73.375 to 75.875 GHz and 83.375 to 85.875 GHz band is available in the UK under a light licensed process for point to point fixed wireless applications. The fee for the licence is currently £50, which includes the charge for registration of the first link for the first year of the licence. Any further links registered by the licensee will be charged at £50 per link per year. For more information please visit the Ofcom website https://www.ofcom.org.uk/spectrum/radio-equipment/fixed-terrestrial-links/
Data transmission
- Maximum data transfer rate: 5000 Mbit/s
- Maximum transfer distance: 2000 m
Antenna
- Antenna design: External
- Antennas quantity: 1
Wireless LAN features
- WLAN data transfer rate (max): 5000 Mbit/s
- Frequency band: 80GHz (71 - 76GHz, 81 - 86GHz)
- Modulation: 16-QAM, 32-QAM, 64-QAM, 128-QAM, 256-QAM
- Receiver sensitivity: See Datasheet
- Output power (dBm): See Datasheet
- Frequency stability: 5 ppm
- Outdoor range: 2000m
Network
- Ethernet LAN interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Networking standards: IEEE 1588v2, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3x
- Cabling technology: 10/100/1000Base-T(X)
Ports & interfaces
- Connectivity technology: Wired & Wireless
- Ethernet LAN (RJ-45) ports: 4
Security
- Security algorithms: 128-bit AES, 256-bit AES
Management features
- Management protocols: SNMP v1/v2c/v3, HTTPs, SSH, SFTP, RADIUS,
Features
- Product type: Network bridge
- Product colour: White
- International Protection (IP) code: IP67
Power
- Power source type: PoE
- AC input voltage: 100-240 V
- DC input voltage: 40.5 - 60VDC
- Power consumption (typical): 54 W
- Power over Ethernet (PoE) voltage: 55 V
- Power plug type: Type G
Operational conditions
- Operating temperature (T-T): -35 - 55 °C
Certificates
- Certification: ETSI EN 302 217 / FCC CFR 47, Part 101 and Part 15
Weight & dimensions
- Antenna diameter: 30 cm
- Width: 290 mm
- Depth: 302.5 mm
- Height: 117.6 mm
- Weight: 12.5 kg
Packaging content
- Cables included: LAN (RJ-45)
Other features
- Warranty period: 2 year(s)
