80GHz 2Gbps up to 5km

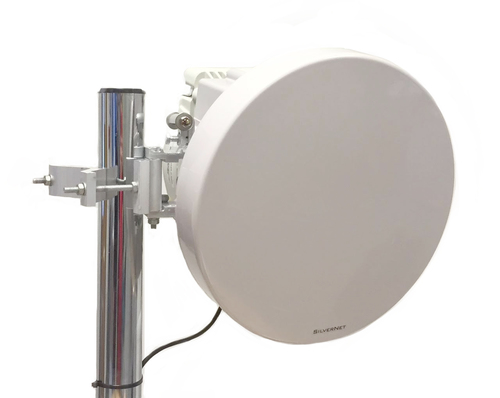

The SIL FDD 802G-60-PCP is an all-outdoor, full IP, next-generation millimetre wave radio link operating in the 71-86GHz E-Band.
The SIL FDD 802G-60-PCP is an outdoor 80GHz millimetre-wave radio link rated for 2Gbps over links up to 5km, running on the same 71-86GHz E-Band with a larger 60cm antenna for the extended reach. Two Gigabit Ethernet ports come standard, with an option for two Gigabit Fibre ports or a single 2.5Gbps Fibre port, aimed at carrier-class mobile backhaul, enterprise and ISP links in urban settings. It runs on the same synchronisation and Ethernet/IP feature set as the rest of the SilverNet 80GHz Backhaul range, and pairs with the free SilverView network monitoring software.
Note: the 73.375 to 75.875 GHz and 83.375 to 85.875 GHz band is available in the UK under a light licensed process for point to point fixed wireless applications. The fee for the licence is currently £50, which includes the charge for registration of the first link for the first year of the licence. Any further links registered by the licensee will be charged at £50 per link per year. For more information please visit the Ofcom website https://www.ofcom.org.uk/spectrum/radio-equipment/fixed-terrestrial-links/
Data transmission
- Maximum data transfer rate: 2000 Mbit/s
- Maximum transfer distance: 5000 m
Antenna
- Antenna design: External
- Antennas quantity: 2
Wireless LAN features
- Frequency band: 80 GHz
- Modulation: 8-QAM, 16-QAM, 32-QAM, 64-QAM, 128-QAM, 256-QAM, BPSK
- Frequency stability: 5 ppm
Ports & interfaces
- Connectivity technology: Wired & Wireless
Security
- Security algorithms: 128-bit AES, 256-bit AES
Management features
- Management protocols: SNMP v1/v2c/v3, HTTPs, SSH, SFTP, RADIUS,
Features
- Product type: Network bridge
- Mounting type: Wall/Pole
- Product colour: White
- International Protection (IP) code: IP65
Power
- Power source type: PoE
Operational conditions
- Operating temperature (T-T): -35 - 55 °C
Certificates
- Certification: ETSI EN 302 217 / FCC CFR 47, Part 101 and Part 15
Weight & dimensions
- Antenna diameter: 60 cm
- Weight: 15.5 kg
Other features
- Warranty period: 1 year(s)
