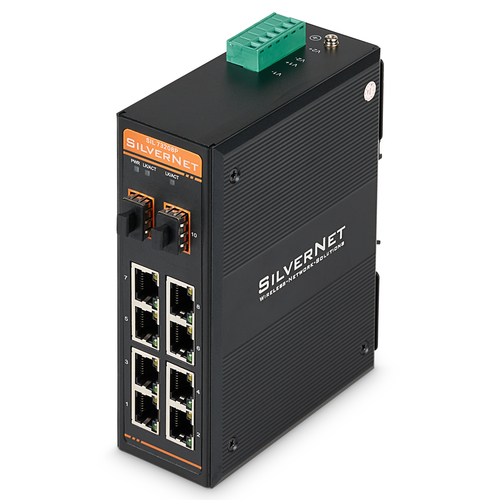

The SIL 73208P is an industrial-grade Gigabit PoE+ Ethernet Switch that includes eight 10/100/1000Mbps RJ45 ports with PoE+ (30w) support, and two 100/1000Mbps SFP (Fibre) uplink ports. This high-performance, high-specification, and cost-effective unit is well-suited for network operations in challenging industrial environments. This switch is plug-and-play, requiring no configuration, and becomes operational as soon as it is powered on. It provides flexible installation options, such as DIN rail and wall mounting with the provided bracket, adding to its versatility. Built for tough conditions, the switch features a robust industrial design and an extended temperature range, making it ideal for demanding settings. Adhering to the IEEE802.3af/at standard, the SIL 73208P facilitates Power-Over-Ethernet (with a required minimum input of 48-56VDC) via CAT 5 / CAT 6 cables. The fibre optic ports are equipped with a modular SFP slot that is compatible with any MSA-compliant 1.25Gbps SFP Transceiver.

Management features

Switch type: Unmanaged
Switch layer: L2

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8
Installed SFP modules quantity: 2
Fibre ports quantity: 2
Fibre optic connector: SFP

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology: 1000BASE-T
Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8.1, Fibre

Optical fibre

Fibre ethernet cabling technology: 1000BASE-FX
Fibre type: Multi-mode

Data transmission

Switching capacity: 20 Gbit/s
MAC address table: 4000 entries
Latency (10-100 Mbps): 10 µs
Latency (1 Gbps): 10 µs
Jumbo frames: 10000

Design

Product colour: Black
Housing material: Aluminium
LED indicators: Data, LAN, Power
International Protection (IP) code: IP40

Power

Number of power supply units: 1
DC input voltage: 12 - 56 V
Power consumption (typical): 15 W

Power over Ethernet (PoE)

Power over Ethernet (PoE) type supported: Passive PoE
Power over Ethernet (PoE) ports quantity: 8
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet (PoE) voltage: 48 V
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 240 W

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 49 mm
Depth: 108 mm
Height: 138 mm
Weight: 685 g

Certificates

Certification: CE FCC Part 15 Class A IEC 61000-4-2 (ESD): Level 4 (8K/15K) IEC 61000-4-3 (RS): Level 3 (10V/m) IEC 61000-4-4 (EFT): Level 3 (1V/2V) IEC 61000-4-5 (surge): Level 3 (4KV/2KV) IEC 61000-4-6 (RF coupling): (10V/m) IEC61000-4-8 (Power Frequency Magnetic Field):Level 4 (30A/m) IEC 60068-2-27 IEC 60068-2-32 0.5m IEC 60068-2-6 UKCA BS EN IEC 62368-1:2020+A11:2020 UKCA BS IEC 62321-1:2013, IEC 62321-3-1:2013 UKCA BS IEC 62321-4:2013+AMD1:2017, IEC 62321-5:2013 UKCA BS IEC 62321-6:2015, IEC 62321-7-1:2015 UKCA BS IEC 62321-7-2:2017, IEC 62321-8:2017 UKCA BS EN 55032:2015/A11:2020 UKCA BS EN IEC 61000-3-2:2019+A1:2021 UKCA BS EN 61000-3-3:2013/A2:2021 UKCA BS EN 55035:2017/A11:2020
