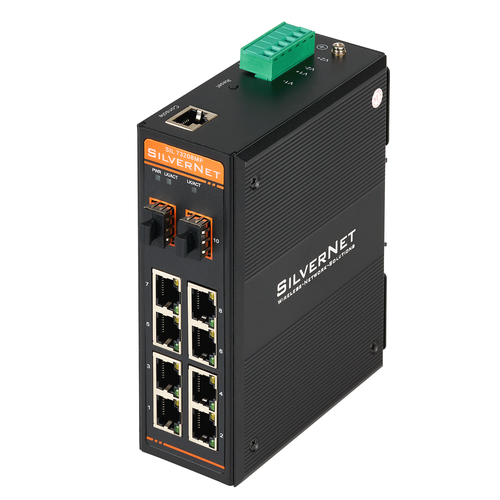

73208MP-12V

The SilverNet Industrial 73208MP-12V Gigabit PoE+ Managed Switch is a fully managed layer 2 Switch, offering an ideal solution for deployment in harsh environments thanks to its rugged industrial design. With an input voltage range of 9vdc to 56vdc this device offers up to PoE+ on all 8 ports across the whole voltage range. It has a total PoE budget of 240 watts. The Switch has several intelligent features, including a dual input design, no fan, low power consumption, overcurrent protection, and high reliability. The SilverNet Industrial Gigabit PoE+ Managed Switches offer a versatile solution for extending Ethernet over distance through fibre daisy chain. This negates the need for separate power supplies for IP video cameras and wireless access points. These Switches also have an extended temperature range, allowing them to operate effectively in outdoor cabinets and harsh industrial environments. In compliance with the IEEE802.3af/at standard, Power-over-Ethernet delivery over twisted pair cables is possible. The switch also includes two modular SFP slots that support any type of MSA-compliant pluggable 1.25Gbps SFP transceiver.

Management features

• Switch type: Managed
• Switch layer: L2

Ports & interfaces

• Basic switching RJ-45 Ethernet ports quantity: 8
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Gigabit Ethernet (copper) ports quantity: 8
• Installed SFP modules quantity: 2
• Fibre ports quantity: 2
• Fibre optic connector: SFP
• Console port: RJ-45

Network

• Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Copper ethernet cabling technology: 10BASE-TX, 100BASE-TX, 1000BASE-TX
• Cable types supported: Cat5e, Cat6
• Ethernet LAN data rates: 10,100,1000 Mbit/s
• Virtual LAN features: IP subnet-based VLAN, Interface-based VLAN, Multiple VXLAN (MUX VLAN), Port-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID)
• Number of VLANs: 4095

Data transmission

• Switching capacity: 20 Gbit/s
• Throughput: 20000 Mpps
• Forwarding rate: 14.88 Mpps
• MAC address table: 8000 entries
• Latency (10-100 Mbps): 7 µs
• Latency (1 Gbps): 7 µs
• Jumbo frames: 10000
• Packet buffer memory: 4 MB

Security

• DHCP features: DHCP snooping

Design

• Product colour: Black
• Housing material: Aluminium
• LED indicators: LAN, PoE, Power
• International Protection (IP) code: IP40

Performance

• Minimum system requirements: Internet Browser

Power

• Power source: DC
• DC input voltage: 9 - 56 V
• Power consumption (typical): 7 W
• Power consumption (max): 15 W
• Power protection features: Overload, Reverse polarity

Power over Ethernet (PoE)

• Power over Ethernet (PoE) type supported: Active PoE
• Power over Ethernet (PoE) ports quantity: 8
• Power over Ethernet plus (PoE+) ports quantity: 8
• Power over Ethernet (PoE) voltage: 48 V
• Power over Ethernet (PoE) power per port: 30 W
• Total Power over Ethernet (PoE) budget: 240 W

Operational conditions

• Operating temperature (T-T): -40 - 75 °C
• Storage temperature (T-T): -40 - 85 °C
• Operating relative humidity (H-H): 5 - 90%

Weight & dimensions

• Width: 90 mm
• Depth: 120 mm
• Height: 40 mm

Certificates

• Certification: CE FCC 15 A IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 EN50121-4 UKCA BS EN IEC 62368-1:2020+A11:2020 UKCA BS IEC 62321-1:2013, IEC 62321-3-1:2013 UKCA BS IEC 62321-4:2013+AMD1:2017, IEC 62321-5:2013 UKCA BS IEC 62321-6:2015, IEC 62321-7-1:2015 UKCA BS IEC 62321-7-2:2017, IEC 62321-8:2017 UKCA BS EN 55032:2015/A11:2020 UKCA BS EN IEC 61000-3-2:2019+A1:2021 UKCA BS EN 61000-3-3:2013/A2:2021 UKCA BS EN 55035:2017/A11:2020
