7-42GHz up to 1Gbps Split Mount

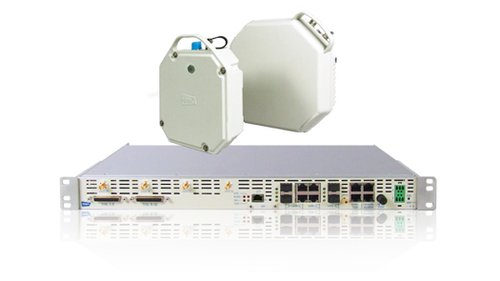

SilverNet SIL AGS20: a 7-42GHz split-mount microwave backhaul platform delivering up to 1Gbps per radio channel with 46Gbps full-duplex switching.
The SIL AGS20 is SilverNet’s split-mount microwave aggregation platform for mobile backhaul, addressing LTE-Advanced and 5G transport needs across a 7-42GHz frequency range with fully hitless adaptive coding and modulation.
Radio
- Configuration: 1+0 (1x IF); 1+0, 1+1, 2+0 with XPIC Radio LAG (2x IF); 1+0, 1+1, 2+0, 4+0 with XPIC Radio LAG (4x IF)
- Switching capability: 46 Gbps full duplex
- TDM transmission capability: Up to 126 x E1 per radio direction
- Modulation: 4 QAM to 4096 QAM with Hitless ACM
- Frequency bands: 4GHz, 6L/6U, 7/8, 10/11, 13, 15, 18, 23, 26, 28, 32, 38, 42 GHz
- Channel spacing: 7, 14, 28, 40, 56, 112 MHz
- Throughput: Up to 1Gbps per radio channel
Network
- Ethernet/Radio interfaces (1x IF): 1 x IF (ODU), 2 x GE electrical, 4 x GE SFP (1/2.5Gbps), 2 x GE combo (electrical/optical)
- TDM interfaces (optional): 16 x E1 native / PWE3 mode software selectable; 2 x STM-1 native; NBUS nodal expansion
- Synchronisation interfaces: 1pps / ToD / 2048 KHz
- Local maintenance interfaces: Console port / LAN port
- Layer 2: MEF 2.0 certified, 8-queue flexible scheduler, 4-level hierarchical QoS, VLAN/IPv4/IPv6/MPLS-aware QoS, Ethernet Ring Protection G.8032, IEEE 802.1ad QinQ, IEEE 802.3ad link aggregation, Ethernet OAM, jumbo frames up to 12KB
- Layer 3: LDP/TLDP, RSVP/RSVP-TE, MPLS L2VPN/VPLS/L3VPN, OSPFv2, BGPv4, IS-IS, MPLS-OAM
Security
- Encryption: AES 128-bit and 256-bit
Environmental
- ODU weather-proofing class: IP67
- IDU temperature range: -5°C to +55°C
- ODU temperature range: -35°C to +55°C
- Conformance: ETSI EN 302 217 / FCC Part 101
Weight & dimensions
- Dimensions: 442 x 44 x 223 mm (17.4 x 1.7 x 8.7 in)
