LITE-PCP G5

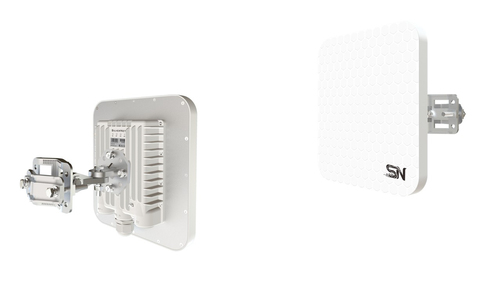

The SIL-LITE-PCP Gen 5 is a powerful, compact Point-to-Point (PTP) wireless bridge engineered for long-range, high-capacity connectivity.
The SIL-LITE-PCP Gen 5 is a powerful, compact Point-to-Point (PTP) wireless bridge engineered for long-range, high-capacity connectivity. Designed for demanding environments where reliability and throughput matter, the LITE-PCP delivers up to 2.5 Gbps of full-duplex usable bandwidth, making it ideal for linking remote buildings, extending network infrastructure, or providing resilient backhaul for CCTV and security systems. Operating across the extended 5.125-6.425 GHz band, the SIL-LITE-PCP offers excellent channel flexibility and performance in both congested and low-noise environments. Its integrated dual-polarised 20 dBi antenna enables stable PTP links of up to 6 km, providing a strong balance of range, speed, and installation simplicity. The unit features a versatile connectivity suite, including 1 × RJ45, 1 × SFP+, and 1 × DC input (9-56 V), ensuring seamless integration with modern network architectures. Security is handled by robust AES + 256 SAE encryption, while WEB-based management and PoE support make deployment fast and straightforward. Engineered with professional installers in mind, the SIL-LITE-PCP includes advanced diagnostic and optimisation tools such as TDMA, a built-in spectrum analyser, and an integrated throughput tester. These features ensure consistent, predictable performance even in challenging RF conditions. As part of the SilverNet PRO G5 Range, the SIL-LITE-PCP benefits from the same high-grade wireless platform used across the family. When paired with SilverView, SilverNet’s FREE network monitoring and management software, the LITE-PCP becomes a fully manageable, easy-to-maintain PTP solution suitable for enterprise, industrial, and municipal deployments. The SIL-LITE-PCP Gen 5 includes a 2-year parts and labour warranty, with the option to extend to 5 years for long-term assurance.
Data transmission
- Maximum data transfer rate: 2500 Mbit/s
- Maximum transfer distance: 6000 m
Antenna
- Antenna design: Internal
- Antenna type: 2x2
- Antenna gain level (max): 20 dBi
Wireless LAN features
- Wi-Fi band: Single-band (5 GHz)
- Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- WLAN data transfer rate (max): 2500 Mbit/s
- Frequency band: 5.150 - 6.425 GHz
- Transmission gain: 0 - 20 dB
- Output power (dBm): 26
- Outdoor range: 6000
Network
- Ethernet LAN interface type: 2.5 Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000, 2500 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11be, IEEE 802.11n
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- Power over Ethernet plus (PoE+) ports quantity: 1
Security
- Security algorithms: 256-bit AES, SNMPv2, SNMPv3, SSH
Features
- International Protection (IP) code: IP67
Features
- Mean time between failures (MTBF): 60000 h
Power
- Power source type: DC, PoE
- AC input voltage: 100-240 V
- Power supply: 15.4 W
- DC input voltage: 9-56 V
- Power consumption (typical): 6 W
- Power consumption (max): 16 W
- Power over Ethernet (PoE) voltage: 48 V
- Power plug type: Type G
Operational conditions
- Operating temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage temperature (T-T): -40 - 80 °C
Certificates
- Certification: CE, FCC
Weight & dimensions
- Width: 223 mm
- Depth: 63 mm
- Height: 245 mm
- Weight: 1.17 kg
Packaging content
- Packaging content: Includes 2 x radio, 2 x PoE injector PSU and 2 x Tilt and Swivel 3 Axis mounting bracket.
Other features
- Warranty period: 2 year(s)
