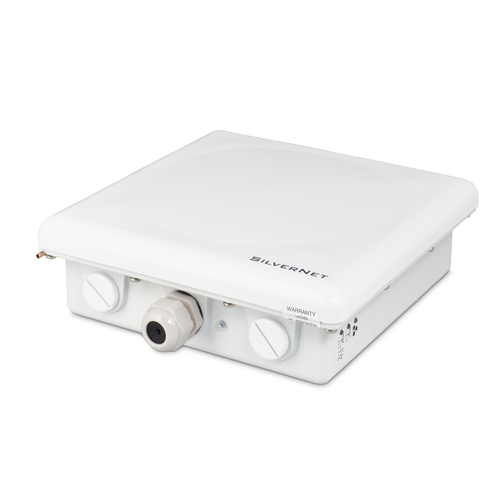

LITE-PCP G4

The LITE-PCP G4 is SilverNet’s newer G4 generation wireless bridge, with a 6km range, metal enclosed housing, and a 100 Mbit/s data rate.

Features

• Maximum data transfer rate: 100 Mbit/s
• Ethernet LAN data rates: 10, 100, 1000 Mbit/s
• Frequency band: 5.1 - 5.8 GHz
• Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x
• Cabling technology: 10/100/1000Base-T(X)
• Channels quantity: 25 channels
• Modulation: 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
• Receiver sensitivity: -82dBm@54Mbps, -74dBm@300Mbps, -68dBm@1.3Gbps
• Mean time between failures (MTBF): 60000 h

Security

• Security algorithms: 256-bit AES, 802.1x RADIUS, SNMPv2, SSH

Protocols

• Management protocols: SNMP V2

Ports & interfaces

• Ethernet LAN (RJ-45) ports: 1

Power

• AC input voltage: 100 - 240 V
• Power consumption (typical): 6 W
• Power consumption (max): 16 W
• Power supply: 15.4 W
• Power plug type: Type G

Design

• Product colour: White
• International Protection (IP) code: IP67
• LED indicators: LAN, Signal strength

Antenna

• Antenna type: Internal
• Antennas quantity: 1
• Antenna gain level (max): 18 dBi

Performance

• Compatible operating systems: Microsoft Windows, Mac OS, Linux Distributions
• Minimum system requirements: Internet Explorer, Google Chrome, Mozilla Firefox

Certificates

• Certification: CE, FCC

Weight & dimensions

• Width: 215 mm
• Depth: 215 mm
• Height: 77 mm
• Weight: 1.6 kg

Packaging content

• Quantity per pack: 2 pc(s)
• Packaging content: Includes 2 x radios, 2 x PoE injector PSU’s and 2 x Tilt and Swivel 3 Axis mounting brackets

Other features

• Supported data transfer rates: 100, 240, 500Mbps
• Indoor range: 6000m
• Outdoor range: 6000m
• Operating temperature (T-T): -4 - 158 °F

Operational conditions

• Operating relative humidity (H-H): 0 - 95%
• Operating temperature (T-T): -20 - 70 °C
• Storage temperature (T-T): -40 - 90 °C
• Storage relative humidity (H-H): 0 - 95%
