STREAM 605-PCP
The SIL STREAM 605-PCP operates in the mmWave / 60GHz band.
The SIL STREAM 605-PCP operates in the mmWave / 60GHz band. With throughput speeds of up to 2.5Gbps Full Duplex, the STREAM 605-PCP is ideal for gigabit connections across last-mile access routes in congested areas. The SIL STREAM 605-PCP is capable of links up to 500M and alignment is simplified with its 40° x 40° beamwidth antenna. The STREAM series of radios all come with 256+ AES and 6 or 12 (half size) transmission channels. Try out our STREAM 60GHz link calculator here https://silvernet.com/60ghz-wireless-link-calculator/
Data transmission
- Maximum data transfer rate: 2500 Mbit/s
- Maximum transfer distance: 500 m
- Supported data transfer rates: 10, 100, 1000, 2500
Antenna
- Antenna design: Internal
- Antenna type: 1x1
- Antenna gain level (max): 22 dBi
- Antennas quantity: 64
Wireless LAN features
- Frequency band: 57-71 GHz
- Channels quantity: 12 channels
- Modulation: 16-QAM, BPSK, QPSK
- Output power (dBm): 40 EIRP
- Outdoor range: 500m
Network
- Ethernet LAN interface type: Multi-Gigabit Ethernet
- Ethernet LAN data rates: 2500 Mbit/s
- Cabling technology: 10/100/1000Base-T(X)
Ports & interfaces
- Connectivity technology: Wired & Wireless
- Ethernet LAN (RJ-45) ports: 1
Security
- Security algorithms: 256-bit AES
- Security features: Over-The-Air Security
Management features
- Management protocols: VLAN, MIB, SNMP V2 / V3
Features
- Product type: Network bridge
- Mounting type: Wall/Pole
- Product colour: White
- LED indicators: LAN, Power, Signal strength, WLAN
- International Protection (IP) code: IP67
Power
- Power source type: DC, PoE
- DC input voltage: 24-52 V
- Power consumption (typical): 17 W
- Power consumption (max): 41 W
- Power over Ethernet (PoE) voltage: 48 V
- DC output current: 0.5 A
Operational conditions
- Operating temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage temperature (T-T): -20 - 70 °C
Certificates
- Certification: FCC IC CE VCCI TELEC RCM
Weight & dimensions
- Width: 110 mm
- Depth: 44 mm
- Height: 125 mm
- Weight: 600 g
Packaging content

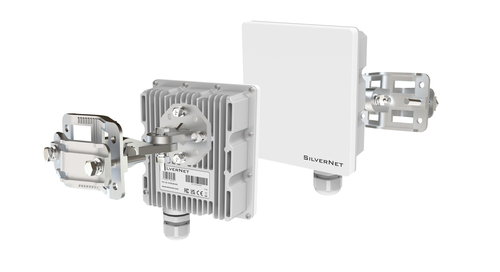

- Packaging content: Complete radio link. Includes 2 x radios, 2 x PoE injector PSU’s and 2 x Tilt and Swivel 3 Axis mounting brackets.
