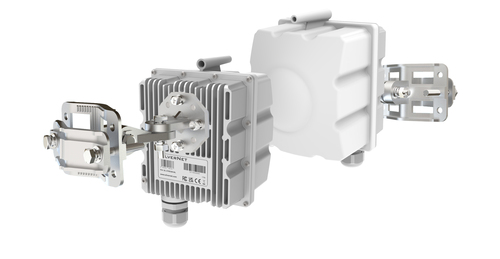

STREAM 60L-PCP
The NEW SIL STREAM 60L-PCP takes all the amazing specification of the 605 and increases the range with a precision antenna to achieve up to 2KM with LOS.
The NEW SIL STREAM 60L-PCP takes all the amazing specification of the 605 and increases the range with a precision antenna to achieve up to 2KM with LOS. In an ultra-compact size (12.5x11x12cm) the 60L packs a punch of still offering 6/12 channels, 2.5Gbps of available throughput and 256AES+ over the air data security. All SilverNet STREAM radios come with a 2 year warranty (extendable to 5 years) and are integrated into our FREE NMS SilverView. If your looking to build out a secure wireless network, look no further, SilverNet have the right products for you, end to end. Try out our STREAM 60GHz link calculator here https://silvernet.com/60ghz-wireless-link-calculator/ Note In the UK, OFCOM “ have introduced a new ‘Spectrum Access: EHF’ licence to enable simple, flexible access to over 32 GHz of radio spectrum across four bands“, including 57-71GHz. Any equipment operating with an EIRP of 40-55dBm will require the owner or operator to have a EHF Licence. The use of this higher power equipment is also restricted to fixed outdoor use only. The fee for the licence is currently £75, renewable every five years and covers unlimited devices and locations. For more information please visit the Ofcom website https://www.ofcom.org.uk/manage-your-licence/radiocommunication-licences/spectrum-access-ehf
Data transmission
- Maximum data transfer rate: 2500 Mbit/s
- Maximum transfer distance: 2000 m
- Supported data transfer rates: 10, 100, 1000, 2500
Antenna
- Antenna design: Internal
- Antenna type: 1x1
- Antenna gain level (max): 32 dBi
Wireless LAN features
- Frequency band: 57-71 GHz
- Channels quantity: 12 channels
- Modulation: 16-QAM, BPSK, QPSK
- Output power (dBm): 55 EIRP
- Outdoor range: 2000m
Network
- Ethernet LAN interface type: Multi-Gigabit Ethernet
- Ethernet LAN data rates: 1000, 2500 Mbit/s
- Cabling technology: 10/100/1000Base-T(X)
Ports & interfaces
- Connectivity technology: Wired & Wireless
- Ethernet LAN (RJ-45) ports: 1
Security
- Security algorithms: 256-bit AES
- Security features: Over-The-Air Security
Management features
- Management protocols: VLAN, MIB, SNMP V2 / V3
Features
- Product type: Network bridge
- Mounting type: Wall/Pole
- Product colour: White
- LED indicators: LAN, Power, Signal strength, WLAN
- International Protection (IP) code: IP67
Power
- Power source type: DC, PoE
- Power consumption (typical): 17 W
- Power consumption (max): 41 W
- Power over Ethernet (PoE) voltage: 48 V
- DC output current: 0.5 A
Operational conditions
- Operating temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage temperature (T-T): -20 - 70 °C
Certificates
- Certification: FCC IC CE VCCI TELEC RCM
Weight & dimensions
- Width: 110 mm
- Depth: 120 mm
- Height: 125 mm
- Weight: 800 g
Packaging content
- Packaging content: Complete radio link. Includes 2 x radios, 2 x PoE injector PSU’s and 2 x Tilt and Swivel 3 Axis mounting brackets.
Other features
- Warranty period: 2 year(s)
