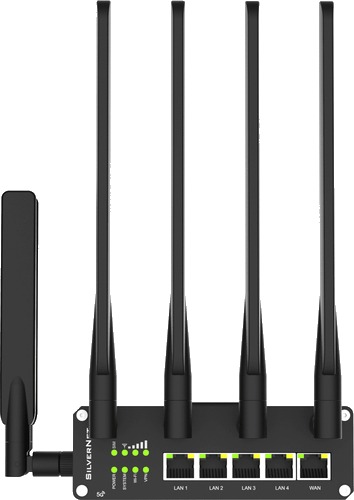

iSITE Switch 5G
The iSite Switch 5G stands as a robust and adaptable industrial-grade router, crafted to fulfil the diverse requirements of M2M/IoT applications.
The iSite Switch 5G stands as a robust and adaptable industrial-grade router, crafted to fulfil the diverse requirements of M2M/IoT applications. Engineered to adhere to stringent industrial norms, it delivers steadfast and uniform performance, even under the most demanding conditions. Equipped with a formidable quad-core CPU and a sophisticated cellular module, the iSite Switch 5G supports a broad spectrum of networks, including global WCDMA, 4G LTE, and 5G sub-6 GHz NSA and SA. Its capacity for high-speed data transmission and steadfast connectivity renders it perfect for a variety of uses, such as smart grids, digital media setups, industrial automation, telemetry devices, medical apparatus, digital manufacturing, financial systems, payment mechanisms, environmental safeguarding, and water management. The device also features a 5-port Gigabit Ethernet switch, RS232/RS485 serial interfaces, and digital I/O ports, offering a plethora of expansion possibilities for M2M applications. This versatility facilitates the straightforward and economical enhancement of data gathering and rapid transmission functions, positioning it as a prime option for enterprises aiming to advance their operations economically. Boasting formidable components, comprehensive connectivity options, and extensive expansion potential, the iSite 5G is the quintessential solution for entities of any scale seeking dependable, high-caliber M2M/IoT connectivity.
WAN connection
- WAN connection type: RJ-45
Wireless LAN features
- Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- WLAN data transfer rate (max): 1800 Mbit/s
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- WLAN data transfer rate (first band): 600 Mbit/s
- WLAN data transfer rate (second band): 1200 Mbit/s
Network
- Ethernet LAN interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Cabling technology: 10/100/1000Base-T(X)
- Networking standards: IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
- VPN support: OpenVPN IPSec LT2P PPTP
Mobile network
- Mobile network generation: 5G
- 4G standard: LTE
- 5G standard: NR
- SIM card type: MiniSIM
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 4
- RS-485 ports: 1
- RS-232 ports: 1
Management features
- Number of data streams: 2x2
Security
- Security algorithms: AES, IPSec, WEP, WPA, WPA-AES, WPA-PSK, WPA2, WPA2-AES
Design
- Product colour: Black
- Housing material: Metal
- International Protection (IP) code: IP30
- LED indicators: Activity, LAN, Link, Power, System, VPN, WLAN
- Product type: Portable router
Packaging content
- Cables included: Power
Antenna
- Antenna design: External
- Antenna connector type: SMA
- Antennas quantity: 8
- Antenna direction type: Omni-directional
Features
- Processor frequency: 2000 MHz
- Processor cores: 4
- Internal memory: 1000 MB
- Internal memory type: DDR4
- Flash memory: 1000 MB
Power
- Power source type: DC, USB
- AC input voltage: 110 - 240 V
- Power consumption (typical): 7 W
Operational conditions
- Operating temperature (T-T): -30 - 60 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
Weight & dimensions
- Width: 135 mm
- Depth: 115 mm
- Height: 36.4 mm
- Weight: 485 g
