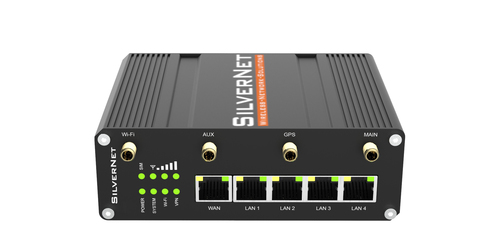

iSITE Switch
The SIL iSITE Switch is an economical, industrial-grade mobile router with embedded smart features designed for a wide range of M2M/IoT applications.
The SIL iSITE Switch is an economical, industrial-grade mobile router with embedded smart features designed for a wide range of M2M/IoT applications. Leveraging Global WCDMA and 4G LTE carrier support with seamless connectivity, the iSITE Switch is ideal for operators aiming to maximise uptime. Its straightforward deployment and extensive remote device management make the iSITE Switch highly adaptable for a variety of IoT/M2M applications. Featuring an integrated cellular modem and dual SIM functionality, the iSITE Switch offers 3G/4G cellular connectivity with 150Mbps download and 50Mbps upload speeds. The device’s LAN ports are PoE+ capable, providing up to 30W of power output to connected equipment. Additionally, it includes 5 fast Ethernet ports and supports Wi-Fi compliant with 802.11b/g/n standards, ensuring continuous internet access for users.
WAN connection
- WAN connection type: RJ-45
Wireless LAN features
- Wi-Fi band: Single-band (2.4 GHz)
- Top Wi-Fi standard: Wi-Fi 4 (802.11n)
- WLAN data transfer rate (max): 65 Mbit/s
- Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
- WLAN data transfer rate (first band): 11 Mbit/s
- WLAN data transfer rate (second band): 54 Mbit/s
- WLAN data transfer rate (third band): 65 Mbit/s
Network
- Ethernet LAN interface type: Fast Ethernet
- Ethernet LAN data rates: 10, 100 Mbit/s
- Cabling technology: 10/100Base-T(X)
- Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Mobile network
- Mobile network generation: 4G
- SIM card type: MicroSIM
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 4
- RS-485 ports: 1
- RS-232 ports: 1
Security
- Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, WPA-AES, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP
Protocols
- Routing protocols: OSPF, RIP-1, RIP-2, VRRP
- Management protocols: Web, CLI, SMS, On-demand dial up, SNMP v1/v2/v3
- Supported network protocols: IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN, SSH
Design
- Product colour: Black
- Housing material: Aluminium
- International Protection (IP) code: IP40
- LED indicators: Activity, LAN, Power, System, VPN, WLAN
- Product type: Portable router
Certificates
- Certification: CE, FCC, RCM RoHS IEC 61000-4-2 Level 3 IEC 61000-4-3 Level 2 IEC 61000-4-4 Level 3 IEC 61000-4-5 Level 3 IEC 61000-4-6 Level 3 IEC 61000-4-8 Level 4 IEC 61000-4-11 Level 3 EN 301 489-1/17/19/52, EN 301 511, EN 301 908-1/2/13, EN 303 413, EN300 328 EN62368-1
Antenna
- Antenna design: External
- Antenna connector type: RJ-SMA
- Antennas quantity: 4
Features
- Processor architecture: ARM Cortex A7
- Processor frequency: 528 MHz
- Internal memory: 128 MB
- Flash memory: 128 MB
- Electromagnetic compatibility: EN 55032, EN 55035
Power
- Power source type: DC
- Power consumption (typical): 3.9 W
Operational conditions
- Operating temperature (T-T): -40 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
- Storage relative humidity (H-H): 0 - 95%
- Isolation: 1.5 kV
Weight & dimensions
- Width: 45 mm
- Depth: 103 mm
- Height: 135 mm
- Weight: 485 g
