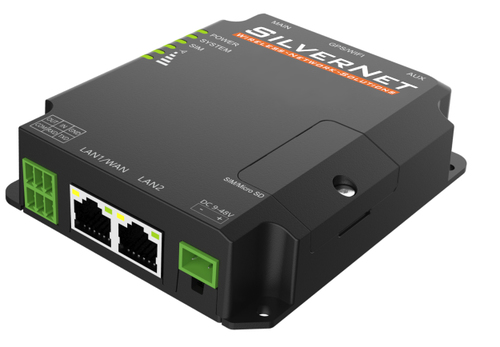

iSITE Connect
The SIL iSITE Connect is a cost effective, industrial mobile router with embedded intelligent features that are designed for diverse M2M/IoT applications.
The SIL iSITE Connect is a cost effective, industrial mobile router with embedded intelligent features that are designed for diverse M2M/IoT applications. Utilising WCDMA, 4G LTE carrier support, and drop-in connectivity, the iSITE range stands out for operators aiming to maximise uptime and reliability. The iSITE range is highly versatile in various IoT/M2M applications, thanks to its straightforward deployment and comprehensive remote device management through SilverNet’s ‘iSITE Hub’. Moreover, by integrating with SilverNet’s ‘iSITE VPN’, secure tunnels to private networks can be established, enhancing security and privacy. The iSITE Connect uses an embedded cellular modem and contains dual SIM slots for network failover. Thus, the iSITE Connect provides 3G/4G cellular network connectivity with up to 150 Mbps download capacity and up to 50 Mbps uplink. With 2 fast Ethernet ports and Wi Fi 802.11b/g/n supported, these capabilities can deliver users uninterrupted internet access.
WAN connection
- WAN connection type: RJ-45
Wireless LAN features
- Wi-Fi band: Single-band (2.4 GHz)
- Top Wi-Fi standard: Wi-Fi 4 (802.11n)
- WLAN data transfer rate (max): 150 Mbit/s
- Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Network
- Ethernet LAN interface type: Fast Ethernet
- Ethernet LAN data rates: 10, 100 Mbit/s
- Cabling technology: 10/100Base-T(X)
- Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Mobile network
- Mobile network generation: 4G
- SIM card type: MicroSIM
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 2
- RS-485 ports: 1
- RS-232 ports: 1
Security
- Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, WPA-AES, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP
Protocols
- Routing protocols: OSPF, RIP-1, RIP-2, VRRP
- Management protocols: Web, CLI, SMS, On-demand dial up, SNMP v1/v2/v3
- Supported network protocols: IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN, SSH
Design
- Product colour: Black
- Housing material: Aluminium
- International Protection (IP) code: IP30
- LED indicators: Activity, LAN, Power, System, VPN, WLAN
- Product type: Portable router
Certificates
- Certification: CE, FCC, RCM RoHS IEC 61000-4-2 Level 3 IEC 61000-4-3 Level 2 IEC 61000-4-4 Level 3 IEC 61000-4-5 Level 3 IEC 61000-4-6 Level 3 IEC 61000-4-8 Level 4 IEC 61000-4-11 Level 3 EN 301 489-1/17/19/52, EN 301 511, EN 301 908-1/2/13, EN 303 413, EN300 328 EN62368-1
Antenna
- Antenna design: External
- Antenna connector type: RJ-SMA
- Antennas quantity: 3
Features
- Processor architecture: ARM Cortex A7
- Processor frequency: 528 MHz
- Internal memory: 128 MB
- Flash memory: 128 MB
- Electromagnetic compatibility: EN 55032, EN 55035
Power
- Power source type: DC
- Power consumption (typical): 1.9 W
Operational conditions
- Operating temperature (T-T): -40 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
- Storage relative humidity (H-H): 0 - 95%
- Isolation: 1.5 kV
Weight & dimensions
- Width: 110 mm
- Depth: 90 mm
- Height: 26 mm
- Weight: 220 g
