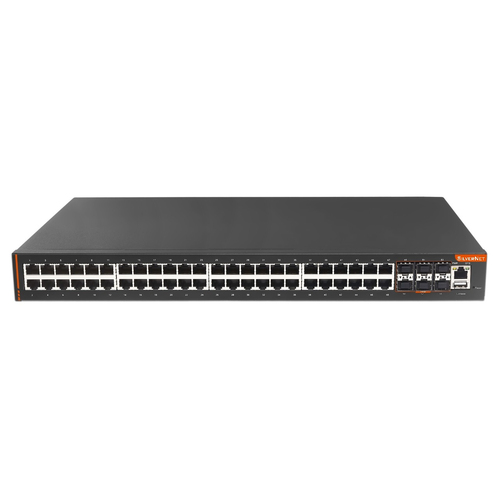

54648MP

The SIL 54648MP is a Gigabit PoE+ Managed Switch designed to deliver stable and reliable Ethernet transmission for medium-to-large commercial networks. It is a fully managed Layer 2+ switch, providing advanced switching features with simple, dependable operation. The switch is equipped with 48 × 10/100/1000Base-T PoE+ ports and 6 × 10G SFP+ uplink ports, and is powered from a 240 V AC supply. The SIL 54648MP is ideal for network expansion, offering configurable Layer 2+ features such as VLANs, PoE scheduling, static routing, IGMP snooping, QoS, and more. The SilverNet Commercial Gigabit + 10G Managed Switch delivers excellent performance for evolving networks and is well-suited for VoIP phones, IP cameras, and wireless access points.

Management features

• Switch type: Managed
• Switch layer: L2+

Ports & interfaces

• Basic switching RJ-45 Ethernet ports quantity: 48
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• SFP+ module slots quantity: 6
• Power connector: AC-in jack

Network

• Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad

Data transmission

• Switching capacity: 216 Gbit/s
• Forwarding rate: 160 Mpps
• MAC address table: 32 entries

Design

• Form factor: 1U
• Product colour: Black

Power

• Power source: AC
• AC input voltage: 100 - 240 V

Power

• AC input frequency: 50/60 Hz

Power over Ethernet (PoE)

• Power over Ethernet (PoE) type supported: PoE+
• Power over Ethernet (PoE) ports quantity: 48
• Power over Ethernet (PoE) power per port: 30 W

Other features

• Warranty period: 3 year(s)

Operational conditions

• Operating temperature (T-T): 0 - 50 °C
• Storage temperature (T-T): -20 - 70 °C
• Operating relative humidity (H-H): 5 - 90%

Weight & dimensions

• Width: 440 mm
• Depth: 250 mm
• Height: 45 mm
• Weight: 4 kg

Packaging content

• Cables included: AC
