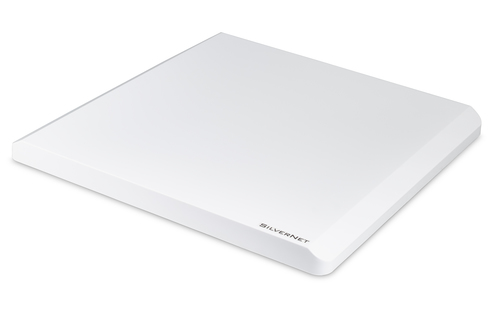

MAX-PCP G4
The SIL MAX PCP is an outdoor wireless bridge designed for long range transmission.
The SIL MAX PCP is an outdoor wireless bridge designed for long range transmission. With its fully integrated , high power, dual polarised 25dBi antenna, the SIL MAX PCP is capable of distances of up to 20km. The link is designed to be highly secure and includes enhanced features such as: MIMO Spatial Multiplexing, Ultrafast Radio Speed, highly secure 256bit AES Traffic Encryption and much more. The SIL MAX PCP is available as 100Mbps, 240Mbps and 500Mbps Full Duplex options. This radio is part of the SilverNet PRO Range. The PRO Range is a family of class leading, wireless outdoor bridge solutions that have been optimised for long transmission distances and designed to be extremely compact and rugged. The PRO Range will save money, while servicing the need to construct a solid and reliable wireless system replacing the requirement for expensive lease lines. Couple that with the FREE SilverView network monitoring software and you have an outstanding feature packed solution.
Data transmission
- Maximum data transfer rate: 100 Mbit/s
- Maximum transfer distance: 60000 m
- Supported data transfer rates: 100, 240, 500Mbps
Antenna
- Antenna design: Internal
- Antenna gain level (max): 23 dBi
- Pan/tilt-axis range: 180°
- Antennas quantity: 1
Wireless LAN features
- Wi-Fi band: Single-band (5 GHz)
- Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
- WLAN data transfer rate (max): 1300 Mbit/s
- Frequency band: 5.1 - 5.8 GHz
- Transmission gain: 0 - 23 dB
- Signal strength: -40 dBm
- Channels quantity: 25 channels
- Modulation: 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
- Receiver sensitivity: -82dBm@54Mbps, -74dBm@300Mbps, -68dBm@1.3Gbps
- Output power (dBm): 26
- Indoor range: 60000m
- Outdoor range: 60000m
Network
- Ethernet LAN interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x
- Cabling technology: 10/100/1000Base-T(X)
Ports & interfaces
- Connectivity technology: Wired & Wireless
- Ethernet LAN (RJ-45) ports: 1
- Power over Ethernet plus (PoE+) ports quantity: 1
Security
- Security algorithms: 256-bit AES, 802.1x RADIUS, SNMPv2, SSH
- Authentication method: WPA2 AES
Management features
- Management protocols: SNMP V2
Features
- Product type: Network bridge
- Product colour: White
- LED indicators: LAN, Signal strength
Features
- International Protection (IP) code: IP67
- Mean time between failures (MTBF): 60000 h
Power
- Power source type: DC, PoE
- AC input voltage: 100-240 V
- Power supply: 15.4 W
- DC input voltage: 24-48/48-56 V
- Power consumption (typical): 6 W
- Power consumption (max): 16 W
- Power over Ethernet (PoE) voltage: 48 V
- Power plug type: Type G
Operational conditions
- Operating temperature (T-T): -20 - 70 °C
- Operating temperature (T-T): -4 - 158 °F
- Operating relative humidity (H-H): 0 - 95%
- Storage temperature (T-T): -40 - 90 °C
- Storage relative humidity (H-H): 0 - 95%
Certificates
- Certification: CE, FCC
Weight & dimensions
- Antenna diameter: 51 cm
- Width: 370 mm
- Depth: 370 mm
- Height: 90 mm
- Weight: 2.5 kg
Packaging content
- Packaging content: Includes 2 x radios, 2 x PoE injector PSU’s and 2 x Tilt and Swivel 3 Axis mounting brackets.
