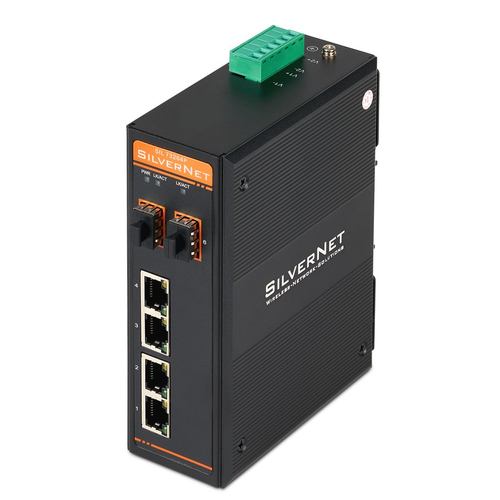

The SIL 73204P is an Industrial Gigabit PoE+ Ethernet Switch featuring four 10/100/1000Mbps RJ45 ports with PoE+ (30w) capabilities, alongside two 100/1000Mbps SFP (Fibre) uplink ports. It’s a high-performance, high-specification, and cost-effective device, ideal for network operations in challenging industrial settings. The switch requires no configuration and is operational immediately upon powering up. It offers versatile installation options, including DIN rail and wall mounting via the included bracket, enhancing its flexibility. Designed for harsh environments, the switch boasts a rugged industrial build and an extended temperature range, making it a perfect fit for demanding conditions. Complying with the IEEE802.3af/at standard, the SIL 73204P delivers Power-Over-Ethernet (requiring a minimum input of 48-56VDC) through CAT 5 / CAT 6 cables. Its fibre optic ports come equipped with a modular SFP slot that accommodates any MSA-compliant 1.25Gbps SFP Transceiver.

Management features

Switch type: Unmanaged
Switch layer: L2

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 4
Installed SFP modules quantity: 2
Fibre ports quantity: 2
Fibre optic connector: SFP

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology: 1000BASE-T
Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8.1, Fibre

Optical fibre

Fibre ethernet cabling technology: 1000BASE-FX
Fibre type: Multi-mode

Data transmission

Switching capacity: 20 Gbit/s
MAC address table: 4000 entries
Latency (10-100 Mbps): 10 µs
Latency (1 Gbps): 10 µs
Jumbo frames: 10000
Packet buffer memory: 2 MB

Design

Product colour: Black
Housing material: Aluminium
LED indicators: Data, LAN, Power
International Protection (IP) code: IP40

Power

Number of power supply units: 1
DC input voltage: 12 - 56 V
Power consumption (typical): 15 W

Power over Ethernet (PoE)

Power over Ethernet (PoE) type supported: Passive PoE
Power over Ethernet (PoE) ports quantity: 4
Power over Ethernet plus (PoE+) ports quantity: 4
Power over Ethernet (PoE) voltage: 48 V
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 120 W

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 35 mm
Depth: 90 mm
Height: 120 mm
Weight: 430 g

Certificates

Certification: UKCA BS EN 55032:2015/A11:2020 UKCA BS EN IEC 61000-3-2:2019+A1:2021 UKCA BS EN 61000-3-3:2013/A2:2021 UKCA BS EN 55035:2017/A11:2020 FCC Part 15 Class A IEC 61000-4-2 (ESD): Level 4 (8K/15K) IEC 61000-4-3 (RS): Level 3 (10V/m) IEC 61000-4-4 (EFT): Level 3 (1V/2V) IEC 61000-4-5 (surge): Level 3 (4KV/2KV) IEC 61000-4-6 (RF coupling): (10V/m) IEC61000-4-8 (Power Frequency Magnetic Field):Level 4 (30A/m) UKCA BS EN IEC 62368-1:2020+A11:2020 UKCA BS IEC 62321-1:2013, IEC 62321-3-1:2013 UKCA BS IEC 62321-4:2013+AMD1:2017, IEC 62321-5:2013 UKCA BS IEC 62321-6:2015, IEC 62321-7-1:2015 UKCA BS IEC 62321-7-2:2017, IEC 62321-8:2017 IEC 60068-2-27 IEC 60068-2-32 0.5m IEC 60068-2-6
