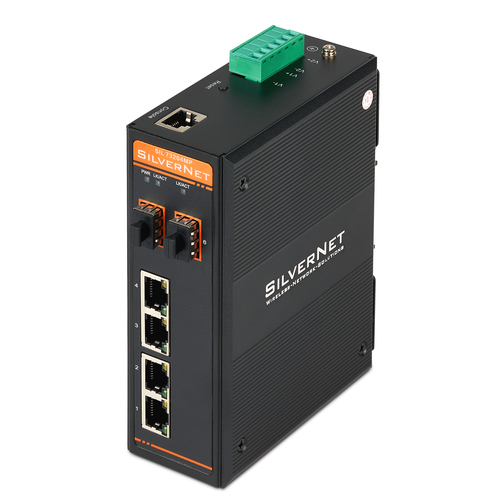

73204MP
The SIL 73204MP is an industrial Gigabit PoE+ Managed Layer 2 Switch, designed for deployment in harsh environments due to its rugged industrial design.
The SIL 73204MP is an industrial Gigabit PoE+ Managed Layer 2 Switch, designed for deployment in harsh environments due to its rugged industrial design. It features 4 x 10/100/1000Base-T ports and 2 x 1000Base-FX SFP slots. This Switch boasts several intelligent features such as dual input design, fanless operation, low power consumption, overcurrent protection, and high reliability. The 73204MP provides a versatile solution for extending Ethernet over distances via fibre daisy chaining, eliminating the need for separate power supplies for IP video cameras and wireless access points. It also operates within an extended temperature range, suitable for outdoor cabinets and demanding industrial settings. Adhering to the IEEE802.3af/at standard, it enables Power-over-Ethernet delivery over twisted pair cables. Additionally, the switch includes two fibre optic ports with a modular SFP slot that accommodates any MSA-compliant pluggable 1.25Gbps SFP transceiver.
Management features
- Switch type: Managed
- Switch layer: L2
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 4
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 4
- Installed SFP modules quantity: 2
- Fibre ports quantity: 2
- Fibre optic connector: SFP
- Console port: RJ-45
Network
- Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Copper ethernet cabling technology: 10BASE-TX, 100BASE-TX, 1000BASE-TX
- Cable types supported: Cat5e, Cat6
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Virtual LAN features: IP subnet-based VLAN, Interface-based VLAN, Port-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID)
- Number of VLANs: 4095
Data transmission
- Switching capacity: 20 Gbit/s
- Forwarding rate: 8.928 Mpps
- MAC address table: 8000 entries
- Latency (10-100 Mbps): 7 µs
- Latency (1 Gbps): 7 µs
- Jumbo frames: 10000
- Packet buffer memory: 4 MB
Security
- DHCP features: DHCP snooping
Design
- Product colour: Black
- Housing material: Aluminium
- LED indicators: LAN, PoE, Power
- International Protection (IP) code: IP40
Performance
- Minimum system requirements: Internet Browser
Power
- Number of power supply units: 1
- DC input voltage: 9 - 56 V
- Power consumption (typical): 7 W
- Power consumption (max): 15 W
- Power protection features: Overload, Reverse polarity
Power over Ethernet (PoE)
- Power over Ethernet (PoE) type supported: Active PoE, PoE+
- Power over Ethernet (PoE) ports quantity: 4
- Power over Ethernet plus (PoE+) ports quantity: 4
- Power over Ethernet (PoE) voltage: 48 V
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 120 W
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 90 mm
- Depth: 120 mm
- Height: 40 mm
- Weight: 600 g
Certificates
- Certification: CE FCC 15 A IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 EN50121-4 UKCA BS EN IEC 62368-1:2020+A11:2020 UKCA BS IEC 62321-1:2013, IEC 62321-3-1:2013 UKCA BS IEC 62321-4:2013+AMD1:2017, IEC 62321-5:2013 UKCA BS IEC 62321-6:2015, IEC 62321-7-1:2015 UKCA BS IEC 62321-7-2:2017, IEC 62321-8:2017 UKCA BS EN 55032:2015/A11:2020 UKCA BS EN IEC 61000-3-2:2019+A1:2021 UKCA BS EN 61000-3-3:2013/A2:2021 UKCA BS EN 55035:2017/A11:2020
