MICRO-PCP G5

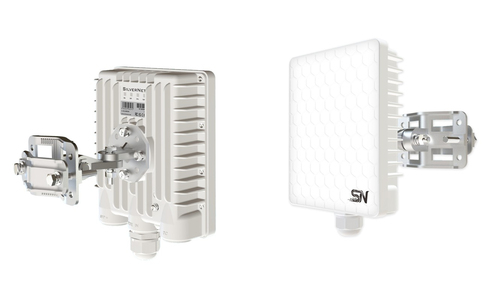

The SIL-MICRO-PCP Gen 5 is a compact, high-performance Point-to-Point (PTP) wireless bridge designed for short- to medium-range links where reliability, speed, and discreet installation are essential. Delivering full-duplex throughput of up to 2.5 Gbps of usable bandwidth in each direction, it provides exceptional performance for CCTV backhaul, building-to-building connectivity, street-level links, and edge-of-network devices that require fast, stable, and secure communication. Operating across a wide 5.125-6.425 GHz frequency range, the SIL-MICRO-PCP offers excellent deployment flexibility in both low-noise and high-density environments. Its integrated dual-polarised 16 dBi antenna supports PTP links of up to 2 km, making it ideal for compact, unobtrusive installations where space and aesthetics matter. Connectivity is simple and versatile, featuring 1 × RJ45, 1 × SFP+, and 1 × DC input (9-56 V), ensuring compatibility with a wide range of network and power configurations. The unit also includes AES+ 256 SAE encryption, WEB-based management, and PoE, making installation secure, efficient, and straightforward. Advanced radio features such as TDMA, a built-in spectrum analyser, and an integrated throughput tester ensure stable, predictable performance even in challenging RF environments. The SIL-MICRO-PCP is engineered as a complete, self-contained PTP solution, requiring no external antennas and delivering consistent, high-quality connectivity straight out of the box. As part of the SilverNet PRO G5 Range, the SIL-MICRO-PCP delivers enterprise-grade performance and reliability. When paired with SilverView, SilverNet’s FREE network monitoring and management software, it becomes a powerful, easy-to-manage PTP solution that simplifies installation, monitoring, and long-term maintenance. The SIL-MICRO-PCP Gen 5 includes a 2-year parts and labour warranty, extendable to 5 years for enhanced long-term protection.

Data transmission

• Maximum data transfer rate: 2500 Mbit/s
• Maximum transfer distance: 2000 m

Antenna

• Antenna design: Internal
• Antenna type: 2x2
• Antenna gain level (max): 16 dBi

Wireless LAN features

• Wi-Fi band: Single-band (5 GHz)
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• WLAN data transfer rate (max): 2500 Mbit/s
• Frequency band: 5.150 - 6.425 GHz
• Transmission gain: 0 - 16 dB
• Output power (dBm): 26
• Outdoor range: 6000

Network

• Ethernet LAN interface type: 2.5 Gigabit Ethernet
• Ethernet LAN data rates: 10, 100, 1000, 2500 Mbit/s
• Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11be, IEEE 802.11n

Ports & interfaces

• Ethernet LAN (RJ-45) ports: 1
• Power over Ethernet plus (PoE+) ports quantity: 1

Security

• Security algorithms: 256-bit AES, SNMPv2, SNMPv3, SSH

Features

• International Protection (IP) code: IP67

Features

• Mean time between failures (MTBF): 60000 h

Power

• Power source type: DC, PoE
• AC input voltage: 100-240 V
• Power supply: 15.4 W
• DC input voltage: 9-56 V
• Power consumption (typical): 6 W
• Power consumption (max): 16 W
• Power over Ethernet (PoE) voltage: 48 V
• Power plug type: Type G

Operational conditions

• Operating temperature (T-T): -20 - 60 °C
• Operating relative humidity (H-H): 0 - 95%
• Storage temperature (T-T): -40 - 80 °C

Certificates

• Certification: CE, FCC

Weight & dimensions

• Width: 140 mm
• Depth: 52 mm
• Height: 170 mm
• Weight: 765 g

Packaging content

• Packaging content: Includes 2 x radio, 2 x PoE injector PSU and 2 x Tilt and Swivel 3 Axis mounting bracket.

Other features

• Warranty period: 2 year(s)
