516S8C4M

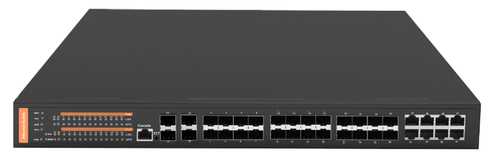

The SIL 516S8C4M is a rack-mountable Layer 3 Managed Network Switch engineered for demanding industrial and utility-grade applications.
The SIL 516S8C4M is a rack-mountable Layer 3 Managed Network Switch engineered for demanding industrial and utility-grade applications. Its efficient Top-of-Rack form factor ensures optimal use of space within rack cabinets, making it ideal for enterprise networks, intelligent transportation systems (ITS), and utility infrastructure. This model provides a versatile port configuration, including: 16 × Gigabit SFP Downlink Ports 8 × RJ45 + SFP Combo Ports 4 × 10Gb SFP Uplink Ports Designed with a fanless architecture, the switch relies on natural convection cooling. This enhances long-term reliability, reduces maintenance requirements, and allows more of the system’s power budget to be allocated to processing and switching performance. Powered via a 240 VAC IEC input, the SIL 516S8C4M integrates seamlessly into commercial and industrial power environments without the need for external DC power supplies, simplifying installation and reducing cabinet complexity. Built for environments where space optimisation, resilience, and interconnectivity are critical, this switch performs reliably in unconditioned outdoor cabinets, roadside enclosures, and industrial control rooms. Its extended operating temperature range and robust metal enclosure ensure dependable operation in harsh conditions. The SIL 516S8C4M adheres to key industry standards including IEEE 802.3, 802.3u, 802.3z, 802.3ab, 802.3x, 802.3az, 802.3ah, as well as IEEE 802.1X and 802.1Q, ensuring compatibility with modern industrial Ethernet architectures.
Management features
- Switch type: Managed
- Switch layer: L3
- MIB support: Ethernet-Like, MIB-II, MIB-, Bridge MIB, Bridge MIB Extensions, RMON MIB(1,2,3&9 Groups), RFC2737 Entity, RFC2863 Interface Group, SNMP-Community-MIB
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 8
- Installed SFP modules quantity: 24
- Installed SFP+ modules quantity: 4
- Power connector: AC-in jack
Network
- Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p
Data transmission
- Switching capacity: 128 Gbit/s
- MAC address table: 16000 entries
Security
- DHCP features: DHCP client, DHCP server
Power
- Power source: AC
- Number of power supply units: 1
- AC input voltage: 240 V
Power over Ethernet (PoE)
- Power over Ethernet (PoE) type supported: PoE+
Other features
- Bandwidth: 128 Gbit/s
- Warranty period: 3 year(s)
Operational conditions
- Operating temperature (T-T): 0 - 55 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 482.5 mm
- Depth: 300 mm
- Height: 44.5 mm
- Weight: 3.8 kg
Packaging content
- Cables included: AC
