716E8C4M

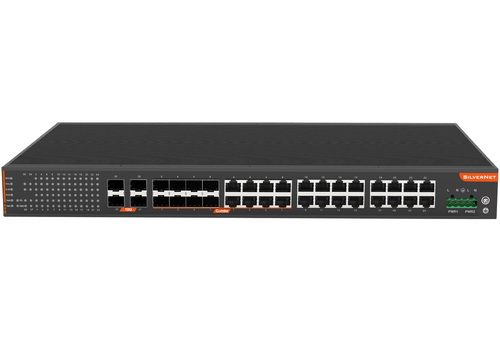

The SilverNet 716E8C4M is a managed Layer 3 switch with 24 Gigabit Ethernet ports and 4 SFP+ 10G uplinks.
24Port GE 4 SFP+ 10G (716E8C4M) from SilverNet.
Management features
- Switch type: Managed
- Switch layer: L3
- MIB support: Ethernet-Like, MIB-II, MIB-, Bridge MIB, Bridge MIB Extensions, RMON MIB(1,2,3&9 Groups), RFC2737 Entity, RFC2863 Interface Group, SNMP-Community-MIB
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Fast Ethernet (copper) ports quantity: 24
- Gigabit Ethernet (copper) ports quantity: 24
- Installed SFP modules quantity: 8
- Installed SFP+ modules quantity: 4
- Combo SFP ports quantity: 8
- Power connector: Terminal block (2-pin)
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Copper ethernet cabling technology: 10BASE-TX, 100BASE-TX, 1000BASE-TX
- Virtual LAN features: Multicast VLAN, Multiple VXLAN (MUX VLAN), Stacked VLAN, Tagged VLAN, Voice VLAN
- Number of VLANs: 256
Data transmission
- Switching capacity: 128 Gbit/s
- MAC address table: 16000 entries
- Latency (10-100 Mbps): 7 µs
- Latency (1 Gbps): 7 µs
- Latency (10 Gbps): 7 µs
- Jumbo frames: 10000
- Packet buffer memory: 12 MB
Security
- DHCP features: DHCP client, DHCP server, DHCP snooping
Security
- IGMP entries: 4096
- Security algorithms: 802.1x RADIUS, HTTPS, SNMPv3, SSL/TLS
- Authentication type: IEEE 802.1x, RADIUS, TACACS+
- Queue scheduling algorithms: Priority queuing (PQ), Strict Priority Queue (SPQ), WFQ, WFQ+SP, WRR+SP, Weighted Round Robin (WRR)
Protocols
- Management protocols: ARP, Flow Control, DDM, DHCP Server/Client, IPv4/IPv6, LLDP, LLDP-MED, UDLD, Port Mirror, RMON, SNMPv1/v2c/v3, Syslog, Telnet
- Routing protocols: OSPFv2, RIP-1, RIP-2, VRRP
Design
- Housing material: Aluminium
- LED indicators: Alarm, Link, Power, Ring, Speed
- International Protection (IP) code: IP40
- Electromagnetic compatibility: FCC Part15 Class A, CE-EMC/LVD, RoHS, EN61000-4-2 (ESD):LEVEL 4, IEC 6100-4-2 (EFT):LEVEL 4, IEC 6100-4-2 (Surge): LEVEL 4, IEC 6100-4-2 (CS)：LEVEL 3, IEC 61000-4-2(PFMP) : LEVEL 5, EN61000-4-3 (RS):LEVEL 4
Performance
- Mean time between failures (MTBF): 250000 h
Power
- Power source: AC/DC
- Number of power supply units: 1
- AC input voltage: 110 - 240 V
- DC input voltage: 9 - 56 V
- Power consumption (max): 24 W
- Power protection features: Over current, Reverse polarity
Other features
- Warranty period: 5 year(s)
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 90%
- Heat dissipation: 75 BTU/h
Weight & dimensions
- Width: 400 mm
- Depth: 300 mm
- Height: 45 mm
- Weight: 2.8 kg
Certificates
- Certification: IEC60068-2-27 IEC60068-2-6 IEC60068-2-31 EN 60950-1 UL 60950-1 CSA C22.2 No.60950-1 UL 508
