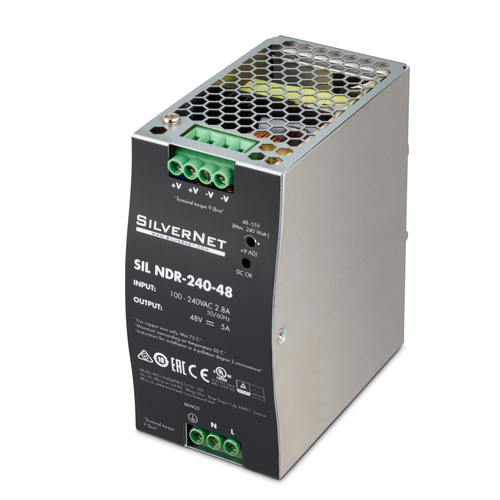

NDR-240-48
The SIL NDR-240-48 PSU is a 240W, 48V, 5A DIN rail power supply designed for installation on TS-35/7.5 or TS-35/15 mounting rails.
The SIL NDR-240-48 PSU is a 240W, 48V, 5A DIN rail power supply designed for installation on TS-35/7.5 or TS-35/15 mounting rails. Its 63mm width helps to conserve space when installed inside cabinets. It is ideal for use with SilverNet Series 7 Industrial network switches. The SIL NDR-240-48 features a metal housing that improves power dissipation and boasts an operational efficiency of up to 90%. It can function in temperatures ranging from -20°C to 70°C and comes with protections against short circuits, overload, and overvoltage.
Features
- Product type: Power supply
- Product colour: Black
- LED indicators: Power
- Power protection features: Over voltage, Overheating, Overload
- Mean time between failures (MTBF): 230200 h
Network
- Compliance industry standards: EN6100-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, EN55032 (CISPR32), EN61204-3 Class B, EN61000-3-2, -3, EAC TP TC 020
Power
- Total power: 240 W
- AC input voltage: 90-264 V
- AC input frequency: 47 - 63 Hz
- Maximum current: 5 A
- Inrush current: 35 A
- DC voltage range: 48 - 55 V
- DC output voltage: 48 V
- Voltage tolerance: 1%
- Ripple & noise: 150 mVpp
Certificates
- Certification: Heavy industry level, criteria A, EAC TP TC 020 Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25°C / 70% RH Withstand Voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC UL508, TUV EN62368-q, EAC TP TC 004 approved;(meet EN60204-1)
Operational conditions
- Operating temperature (T-T): -20 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 20 - 90%
- Storage relative humidity (H-H): 10 - 95%
Weight & dimensions
- Width: 63 mm
- Depth: 125.2 mm
- Height: 113.5 mm
- Weight: 1 kg
