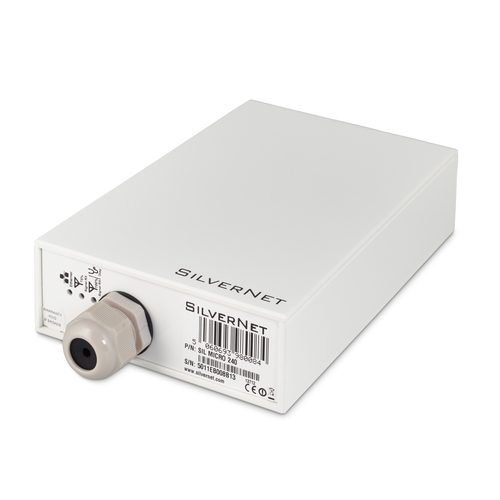

MICRO 240-PCP G3/4
The SIL MICRO 240 PCP is a 2km wireless bridge capable of up to 240Mbps of actual throughput.
The SIL MICRO 240 PCP is a 2km wireless bridge capable of up to 240Mbps of actual throughput. With its high MTBF and robust design, the MICRO 240 is a great choice for those harsh environments that need a reliable product. The SIL MICRO 240 PCP can be used to create stable Point to Point or Point to MultiPoint outdoor wireless networks. The link is very easy to install and is fully integrated into our Free NMS “SilverView”, making this an ideal product for network installers and CCTV professionals. The amazingly small form factor of the MICRO 240 will benefit locations where the radio needs to be unobtrusive. (17.9 x 12 x 4.5 cm). The MICRO 240 radio is available in Standard White or Carbon Black to fit into street scenery. Other colours are available on special order. This radio is part of the SilverNet PRO Range. The PRO Range is a family of class leading, wireless outdoor bridge solutions that have been optimised for long transmission distances and designed to be extremely compact and rugged. The PRO Range will save money, while servicing the need to construct a solid and reliable wireless system replacing the requirement for expensive lease lines.
Data transmission
- Maximum data transfer rate: 240 Mbit/s
- Maximum transfer distance: 2000 m
- Supported data transfer rates: 240Mbps
Antenna
- Antenna design: Internal
- Antenna gain level (max): 14 dBi
- Pan/tilt-axis range: 180°
- Antennas quantity: 1
Wireless LAN features
- Wi-Fi band: Single-band (5 GHz)
- Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
- WLAN data transfer rate (max): 300 Mbit/s
- Frequency band: 5.1 - 5.8 GHz
- Transmission gain: 0 - 14 dB
- Signal strength: -40 dBm
- Channels quantity: 25 channels
- Modulation: 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
- Receiver sensitivity: -82dBm@54Mbps, -74dBm@300Mbps, -68dBm@1.3Gbps
- Output power (dBm): 26
- Indoor range: 2000m
- Outdoor range: 2000m
Network
- Ethernet LAN interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x
- Cabling technology: 10/100/1000Base-T(X)
Ports & interfaces
- Connectivity technology: Wired & Wireless
- Ethernet LAN (RJ-45) ports: 1
Security
- Security algorithms: 128-bit AES, 256-bit AES
- Security features: 802.1x, 802.11i, 802.1Q
- Authentication method: WPA2 AES
Management features
- Management protocols: SNMP V2
Features
- Product type: Network bridge
- Product colour: White
- LED indicators: LAN, Signal strength
Features
- International Protection (IP) code: IP67
- Mean time between failures (MTBF): 60000 h
Power
- Power source type: PoE
- AC input voltage: 100-240 V
- Power supply: 15.4 W
- DC input voltage: 24 - 48 V
- Power consumption (typical): 6 W
- Power consumption (max): 16 W
- Power over Ethernet (PoE) voltage: 48 V
- Power plug type: Type G
Operational conditions
- Operating temperature (T-T): -20 - 70 °C
- Operating temperature (T-T): -4 - 158 °F
- Operating relative humidity (H-H): 0 - 95%
- Storage temperature (T-T): -40 - 90 °C
- Storage relative humidity (H-H): 0 - 95%
Certificates
- Certification: CE, FCC
Weight & dimensions
- Antenna diameter: 20.5 cm
- Width: 179 mm
- Depth: 120 mm
- Height: 45 mm
- Weight: 500 g
Packaging content
- Packaging content: Includes 2 x radios, 2 x PoE injector PSU’s and 2 x Tilt and Swivel 3 Axis mounting brackets.
