734C24MP

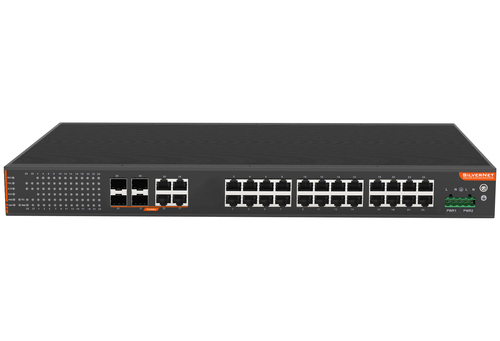

24 PORT PoE+ 4 GE/SFP Combo (734C24MP) from SilverNet.
24 PORT PoE+ 4 GE/SFP Combo (734C24MP) from SilverNet.
Management features
- Switch type: Managed
- Switch layer: L2+
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Fast Ethernet (copper) ports quantity: 24
- Gigabit Ethernet (copper) ports quantity: 24
- Combo SFP ports quantity: 4
- SFP module slots quantity: 4
- Power connector: Terminal block (6-pin)
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Copper ethernet cabling technology: 10BASE-TX, 100BASE-TX, 1000BASE-TX
- Virtual LAN features: Multiple VXLAN (MUX VLAN), Port-based VLAN, Tagged VLAN
- Number of VLANs: 256
Optical fibre
- Fibre ethernet cabling technology: 1000Base-X
Data transmission
- Switching capacity: 56 Gbit/s
- MAC address table: 8000 entries
- Latency (10-100 Mbps): 7 µs
- Latency (1 Gbps): 7 µs
- Jumbo frames: 10000
- Packet buffer memory: 4 MB
Security
- DHCP features: DHCP client, DHCP server, DHCPv6 client, DHCPv6 server
- Security algorithms: 802.1x RADIUS, HTTPS, SNMPv3, SSH-2, SSL/TLS
Security
- Authentication: MAC-based authentication, Port-based authentication
- Authentication type: IEEE 802.1x, RADIUS
- Queue scheduling algorithms: SP, WRR+SP, Weighted Round Robin (WRR)
- MAC address entries: Blackhole MAC address entries, Static MAC address entries
Design
- Form factor: 19U
- Product colour: Black
- Housing material: Aluminium
- LED indicators: Alarm, LAN, Link, Power, Ring
- International Protection (IP) code: IP40
- Electromagnetic compatibility: EN55032 Class A, CISPR 32 FCC Part 15B Class A, EN61000 4 2 (ESD) EN61000 4 3 (RS) EN61000 4 4 (EFT) EN61000 4 5 (Surge) EN61000 4 6 (CS) EN61000 4 8 (PFMF)
Performance
- Noise level: 0 dB
- Mean time between failures (MTBF): 250000 h
Power
- Power source: DC
- Number of power supply units: 2
- DC input voltage: 9 - 56 V
- Power consumption (max): 24 W
- Power protection features: Overload, Reverse polarity
Power over Ethernet (PoE)
- Power over Ethernet (PoE) type supported: Active PoE
- Power over Ethernet (PoE) ports quantity: 24
- Power over Ethernet (PoE) voltage: 48 V
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 720 W
Other features
- Warranty period: 5 year(s)
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 400 mm
- Depth: 300 mm
- Height: 45 mm
- Weight: 2.6 kg
Certificates
- Certification: IEC/EN 62368-1 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 RoHS
