54424MP

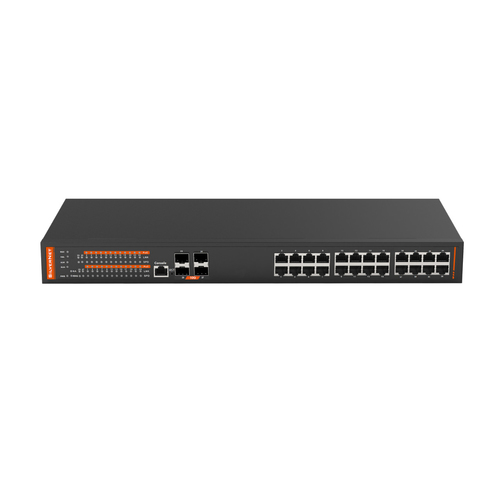

The SilverNet 54424MP is a managed Layer 3 Gigabit PoE+ switch with 24 ports and 4 SFP+ 10G uplinks.
The SIL 54424MP is a Gigabit PoE+ Managed Switch. The switch is a fully managed layer 3 switch that provides stable and reliable Ethernet transmission. The SIL 54424MP has 24 x 10/100/1000Base-T ports with 4 x 10G SFP+ and is powered using 240V AC. The SIL 54424MP is perfect for network expansion. This switch offers configurable Layer 3 features like VLANs, PoE Scheduling, Static Routing, IGMP Snooping, and more. The SilverNet Commercial Gigabit + 10G Managed Switch provides excellent performance for evolving networks and is well-suited for VoIP phones, IP cameras, and wireless access points.
Management features
- Switch type: Managed
- Switch layer: L3
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Combo SFP ports quantity: 4
- Fibre optic connector: LC
- Console port: DB9
- Power connector: AC-in jack
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Copper ethernet cabling technology: 10BASE-TX, 100BASE-TX, 1000BASE-TX
- Ethernet LAN data rates: 1000 Mbit/s
- Number of VLANs: 256
Data transmission
- Switching capacity: 128 Gbit/s
- MAC address table: 16000 entries
- Latency (10-100 Mbps): 7 µs
- Jumbo frames: 10000
Design
- Form factor: 1U
Design
- Product colour: Black
- Housing material: Metal
Performance
- Mean time between failures (MTBF): 100819 h
Power
- Power source: AC
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (typical): 24 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE) type supported: Active PoE
- Power over Ethernet (PoE) ports quantity: 24
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 480 W
Other features
- Warranty period: 3 year(s)
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 400 mm
- Depth: 300 mm
- Height: 45 mm
- Weight: 4 kg
Packaging content
- Cables included: AC
Certificates
- Certification: FCC Part15 Class A CE-EMC/LVD RoHS EN61000-4-2 (ESD):LEVEL 4 IEC 6100-4-2 (EFT):LEVEL 4 IEC 6100-4-2 (Surge): LEVEL 4 IEC 6100-4-2 (CS)：LEVEL 3 IEC 61000-4-2(PFMP) : LEVEL 5 EN61000-4-3 (RS):LEVEL 4 IEC60068-2-27 IEC60068-2-6 IEC60068-2-31 EN 60950 1, UL 60950 1, CSA C22.2 No.60950 1, UL 508
