53224P-AI

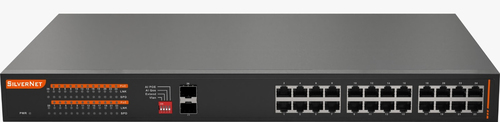

The SilverNet SIL 53224P-AI is a high-performance, commercial-grade Gigabit PoE+ switch designed to provide stable and reliable Ethernet transmission for modern network deployments. Equipped with 24 × 10/100/1000Base-T PoE+ ports and 2 × Gigabit SFP uplink ports, the SIL 53224P-AI delivers flexible connectivity for IP cameras, wireless access points, VoIP phones, and intelligent building systems. This model features a fanless, noiseless design, low power consumption, and a durable IP30 metal housing, ensuring long-term reliability in commercial environments. The SIL 53224P-AI supports the IEEE802.3af/at PoE standard, providing up to 30 W per port with a total PoE budget of 350 W.AI-assisted DIP-switch functions provide enhanced automation: AI VLAN: isolates PoE ports from each other AI Extend: extends PoE transmission up to 250 m (10 Mbps) AI QoS: prioritises video and VoIP traffic AI PoE: automatically resets unresponsive PDs With robust PoE output, stable Gigabit performance, and intelligent automation, the SIL 53224P-AI is ideal for hotels, campuses, factories, dormitories, and small-to-medium enterprises.

Management features

• Switch type: Unmanaged
• Switch layer: L2

Ports & interfaces

• Basic switching RJ-45 Ethernet ports quantity: 24
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• SFP module slots quantity: 2

Network

• Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3az, IEEE 802.1p

Optical fibre

• Fibre ethernet cabling technology: 1000BASE-X

Data transmission

• Switching capacity: 52 Gbit/s
• Forwarding rate: 38.69 Mpps
• MAC address table: 8000 entries

Design

• Form factor: 1U
• Product colour: Black
• Housing material: Metal
• LED indicators: Power, PoE, Link, Activity
• International Protection (IP) code: IP30

Performance

• Noise level: 0 dB

Performance

• Mean time between failures (MTBF): 100819 h

Power

• Power source: AC
• AC input voltage: 100 - 240 V
• AC input frequency: 50/60 Hz
• Power consumption (typical): 18 W
• Power consumption (max): 350 W
• Power protection features: Overload

Power over Ethernet (PoE)

• Power over Ethernet (PoE) type supported: PoE+
• Power over Ethernet (PoE) ports quantity: 24
• Power over Ethernet (PoE) power per port: 30 W
• Total Power over Ethernet (PoE) budget: 350 W

Other features

• Warranty period: 3 year(s)

Operational conditions

• Operating temperature (T-T): 0 - 50 °C
• Storage temperature (T-T): -20 - 70 °C
• Operating relative humidity (H-H): 5 - 90%

Weight & dimensions

• Width: 440 mm
• Depth: 300 mm
• Height: 45 mm
• Weight: 4 kg

Packaging content

• Cables included: AC
