01-25-X131-40XD

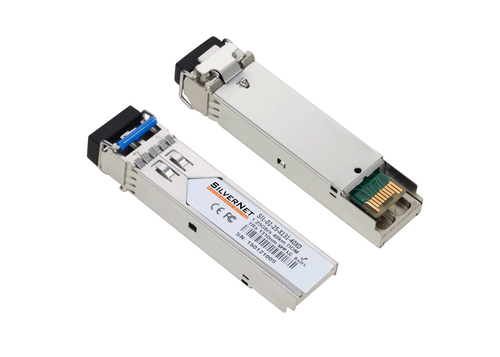

The SIL-01-25-X131-40XD is a 1.25G Singlemode 1310nm SFP featuring DDM, Duplex LC connectors, and a 40-kilometre range.
The SIL-01-25-X131-40XD is a 1.25G Singlemode 1310nm SFP featuring DDM, Duplex LC connectors, and a 40-kilometre range. It is ideal for Gigabit Ethernet switches and routers, adheres to the SFP MSA specifications, and functions within a temperature range of 0 to +70°C.
Performance
- SFP transceiver type: Fibre optic
- Maximum data transfer rate: 1250 Mbit/s
- Interface type: SFP
- Fibre optic connector: LC
- Fibre cable diameters supported (core/cladding): 9/125 µm
- Maximum transfer distance: 40000 m
- Wavelength: 1310 nm
Features
- Product colour: Nickel
Power
- Input voltage: 3.3 V
Certificates
- Compliance certificates: RoHS
- Certification: MSA, CE
Operational conditions
- Operating temperature (T-T): 0 - 70 °C
Operational conditions
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 10 mm
- Depth: 15 mm
- Height: 60 mm
- Weight: 15 g
Packaging content
- Quantity per pack: 1 pc(s)
