01-25-XXXT-0-1

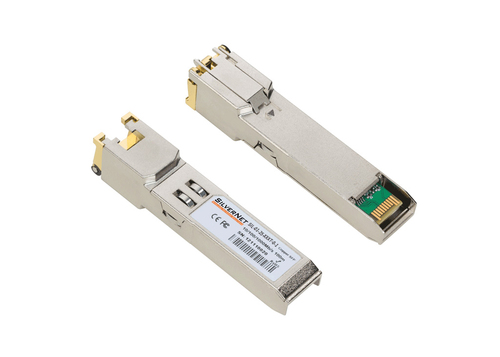

SFP Copper Ethernet Transceiver Modules The SilverNet SFP0-01-25-XXXT-0-1 supports 10/100/1000 Mbps data rate over Cat5 cable with an RJ45 connector interface.
SFP Copper Ethernet Transceiver Modules The SilverNet SFP0-01-25-XXXT-0-1 supports 10/100/1000 Mbps data rate over Cat5 cable with an RJ45 connector interface. It allows communication over twisted-pair up to 100m. Our copper modules are commonly used for transmitting data over a short distance and can be used for servers, switches, LANs in data centres, uplinks and many more applications. The ease and convenience of a single piece assembly that can be hot-plugged into standard SFP+ ports to create 1G connections between devices is invaluable to many network operators.
Performance
- SFP transceiver type: Copper
- Maximum data transfer rate: 1000 Mbit/s
- Interface type: RJ-45
- Maximum transfer distance: 100 m
- Ethernet interface type: Gigabit Ethernet
- Networking standards: IEEE 802.3
- Copper ethernet cabling technology: 10BASE, 100BASE, 1000BASE
Features
- Product colour: Nickel
Power
- Power consumption (typical): 1.05 W
Certificates
- Compliance certificates: RoHS
- Certification: CE
Operational conditions
- Operating temperature (T-T): -5 - 85 °C
- Storage temperature (T-T): -40 - 85 °C
Operational conditions
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 10 mm
- Depth: 15 mm
- Height: 60 mm
- Weight: 15 g
Packaging content
- Quantity per pack: 1 pc(s)
