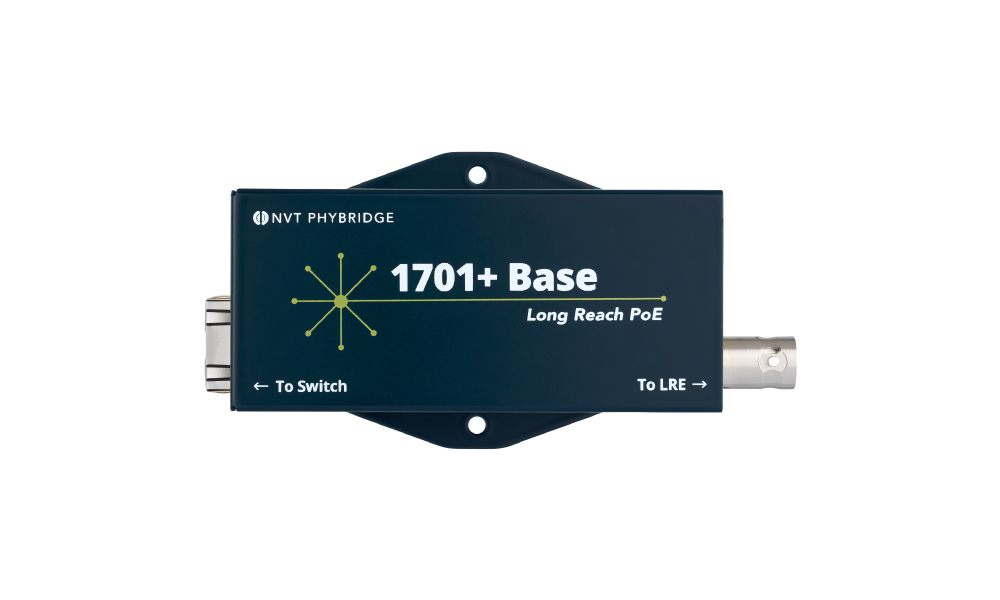

1701+ Base Extender
NVT Phybridge 1701+ Base Extender: delivers up to 420Mbps and PoE+ over coax or UTP cabling, extending reach up to 8,000ft (2.4km).
The NVT Phybridge 1701+ Extender Solution is designed to supercharge the downlink ports of a standard Ethernet switch, delivering up to 420Mbps and PoE+ over Coax, single pair UTP or 2 wire infrastructures with reach of up to 8,000ft (2.4km) on RG6. That’s 24X the reach of standard Ethernet switches, thus removing the costs and disruptions associated with multiple IDF location requirements. With the 1701+ Extender Solution, IP IoT devices can be connected to the existing Coax, UTP or 2 wire cabling infrastructure, delivering optimal performance while saving cost, time, and environmental e-waste. Furthermore, the cost savings realised by using the 1701+ Extender Solution can enable system designers to transfer budget and resources towards higher-quality applications and IEEE 802.3at/af compliant IoT devices, including IP-enabled phones, cameras, access control, speakers, and even facilities lighting.
Features Include
1701+ Base (NV-EC1701PLS-BSE), paired with the 1701+ Link Adapter:
- Data rate up to 420 Mbps with up to 8,000 ft (2.4km) reach*
- Negotiates power with 802.3at/af PoE Switch (802.3at/af max power is 30W)
- Can also be locally powered for non-PoE switch deployments or high-power delivery (100W)
- 10/100/1000 Base-T, Auto-MDIX interface with Ethernet Switch
- Supports up to 4 endpoints in a point to multi-point topology
- LED Indicators (power, link, data)
1701+ Link (NV-EC1701PLS-LK), paired with the 1701+ Base Extender:
- Data rate up to 420 Mbps with up to 8,000 ft (2.4km) reach*
- Negotiates with 802.3at/af IP endpoint
- Can provide up to 25W of power on 2 pairs if powered by the 1701+ Base extender
- Can provide up to 50W of power on 4 pairs, or 25W on 2 pairs, if locally powered
- 328ft (100m) reach from the adapter to the IP endpoint via CAT5 or better cable
- 10/100/1000 Base-T, Auto-MDIX interface with IP endpoint
- LED Indicators (power, link, data)
*Data rate and power are distance/cable dependant, please see corresponding tables in the datasheet.
