73416MP

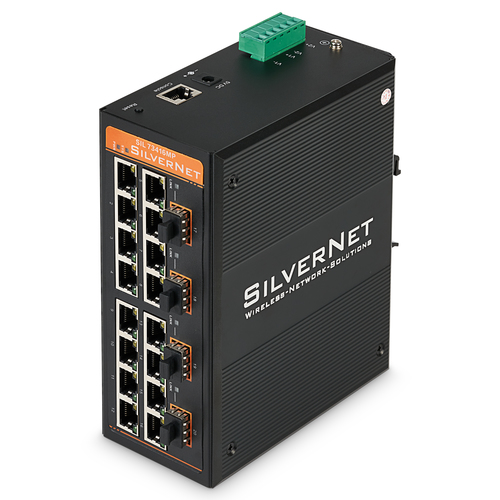

The SIL 73416MP is an industrial Gigabit PoE+ Managed Layer 2 Switch, crafted for use in harsh environments, thanks to its robust industrial design.
The SIL 73416MP is an industrial Gigabit PoE+ Managed Layer 2 Switch, crafted for use in harsh environments, thanks to its robust industrial design. It is equipped with 16 x 10/100/1000Base-T ports and 4 x 1000Base-FX SFP slots. The switch features numerous intelligent attributes, including a dual input design, fanless operation, low power consumption, overcurrent protection, and high reliability. The 73416MP offers a flexible solution for extending Ethernet over long distances through fibre daisy chaining, thus removing the need for individual power supplies for IP video cameras and wireless access points. It also functions within a broad temperature range, making it ideal for outdoor cabinets and challenging industrial environments. Compliant with the IEEE802.3af/at standard, it facilitates Power-over-Ethernet delivery via twisted pair cables. Moreover, the switch contains four fibre optic ports with a modular SFP slot that supports any MSA-compliant pluggable 1.25Gbps SFP transceiver.
Management features
- Switch type: Managed
- Switch layer: L2
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 16
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 16
- Installed SFP modules quantity: 4
- SFP module slots quantity: 4
- Fibre ports quantity: 2
- Fibre optic connector: SFP
- Console port: RJ-45
Network
- Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Copper ethernet cabling technology: 10BASE-TX, 100BASE-TX, 1000BASE-TX
- Cable types supported: Cat5e, Cat6
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Virtual LAN features: IP subnet-based VLAN, Interface-based VLAN, Port-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID)
- Number of VLANs: 4095
Optical fibre
- Fibre ethernet cabling technology: 1000BASE-FX
Data transmission
- Switching capacity: 56 Gbit/s
- Forwarding rate: 29.76 Mpps
- MAC address table: 8000 entries
- Latency (10-100 Mbps): 7 µs
- Latency (1 Gbps): 7 µs
- Jumbo frames: 10000
- Packet buffer memory: 4 MB
Security
- DHCP features: DHCP snooping
Design
- Product colour: Black
- Housing material: Aluminium
- LED indicators: Data, LAN, PoE, Power
- International Protection (IP) code: IP40
Performance
- Minimum system requirements: Web Browser
Power
- Number of power supply units: 1
- DC input voltage: 9 - 56 V
- Power consumption (typical): 7 W
- Power consumption (max): 30 W
- Power protection features: Overload, Reverse polarity
Power over Ethernet (PoE)
- Power over Ethernet (PoE) type supported: Active PoE
- Power over Ethernet (PoE) ports quantity: 16
- Power over Ethernet plus (PoE+) ports quantity: 16
- Power over Ethernet (PoE) voltage: 48 V
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 480 W
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 75 mm
- Depth: 140 mm
- Height: 160 mm
- Weight: 1.14 kg
Packaging content
- Cables included: RS-232
Certificates
- Certification: CE FCC 15 A IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 EN50121-4 UKCA BS EN IEC 62368-1:2020+A11:2020 UKCA BS IEC 62321-1:2013, IEC 62321-3-1:2013 UKCA BS IEC 62321-4:2013+AMD1:2017, IEC 62321-5:2013 UKCA BS IEC 62321-6:2015, IEC 62321-7-1:2015 UKCA BS IEC 62321-7-2:2017, IEC 62321-8:2017 UKCA BS EN 55032:2015/A11:2020 UKCA BS EN IEC 61000-3-2:2019+A1:2021 UKCA BS EN 61000-3-3:2013/A2:2021 UKCA BS EN 55035:2017/A11:2020
