NDR-120-48

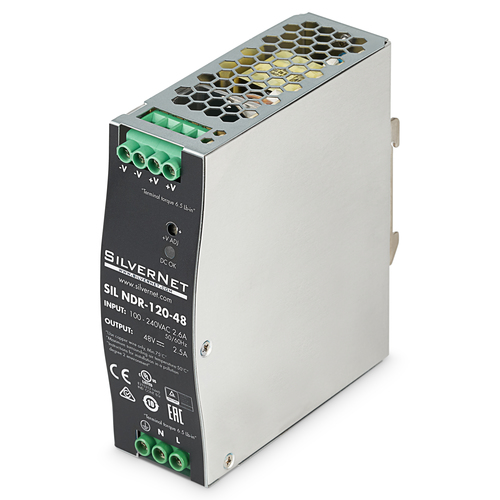

The SIL NDR-120-48 PSU is a slim 120W 48v 2.5A DIN rail power supply, adapted to be installed on TS-35/7.5 or TS35/15 mounting rails.
The SIL NDR-120-48 PSU is a slim 120W 48v 2.5A DIN rail power supply, adapted to be installed on TS-35/7.5 or TS35/15 mounting rails. The PSU is slim (40mm wide), which allows you to save space when fitting inside cabinets. Ideal for use with the SilverNet Series 7 Industrial network switches. The SIL NDR-120-48 is designed with metal housing that enhances the unit’s power dissipation and has a working efficiency up to 90%, it can operate at temperatures between -20°C and 70°C and is equipped with short circuit, over load & over voltage protection.
Features
- Product type: Power supply
- Product colour: Black
- LED indicators: Power
- Power protection features: Over voltage, Overload, Short circuit
- Mean time between failures (MTBF): 456300 h
Network
- Compliance industry standards: EN6100-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, EN55032 (CISPR32), EN61204-3 Class B, EN61000-3-2, -3, EAC TP TC 020
Power
- Total power: 120 W
- AC input voltage: 100-240 V
- AC input frequency: 47 - 63 Hz
- Maximum current: 2.5 A
- Inrush current: 35 A
- DC voltage range: 48 - 55 V
- DC output voltage: 48 V
- Voltage tolerance: 1%
- Ripple & noise: 150 mVpp
Certificates
- Certification: Heavy industry level, criteria A, EAC TP TC 020 Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25°C / 70% RH Withstand Voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC UL508, TUV EN62368-q, EAC TP TC 004 approved;(meet EN60204-1)
Operational conditions
- Operating temperature (T-T): -20 - 70 °C
- Storage temperature (T-T): -40 - 90 °C
- Operating relative humidity (H-H): 20 - 90%
- Storage relative humidity (H-H): 10 - 95%
Weight & dimensions
- Width: 40 mm
- Depth: 113.5 mm
- Height: 125.2 mm
- Weight: 600 g
