08-10-B133-10XD

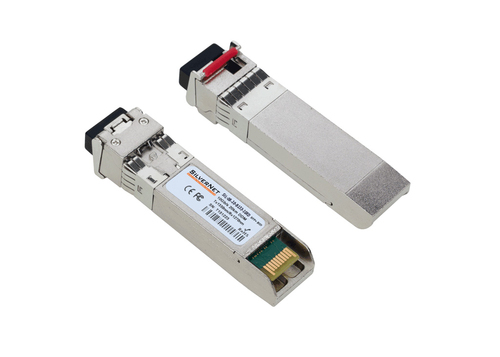

The SIL-08-10-B133-10XD is a 10Gbps Singlemode BiDi (Bi-Directional) SFP module.
The SIL-08-10-B133-10XD is a 10Gbps Singlemode BiDi (Bi-Directional) SFP module. SilverNet BiDi SFP modules, which transmit and receive signals at different wavelengths, should be bought in pairs to connect two BiDi SFPs with opposite wavelengths. For instance, if a TX1330/RX1270nm BiDi SFP is used at one end, a TX1270/RX1330nm (SIL-08-10-B127-10XD) BiDi SFP should be used at the opposite end. The SIL-08-10-B133-10XD modules can support data rates up to 10Gbps for distances up to 10km, comply with the SFP MSA specifications, and operate within a temperature range of 0~+70°C.
Performance
- SFP transceiver type: Fibre optic
- Maximum data transfer rate: 10300 Mbit/s
- Interface type: SFP+
- Fibre optic connector: LC
- Fibre cable diameters supported (core/cladding): 9/125 µm
- Maximum transfer distance: 10000 m
- Tx wavelength (max): 1330 nm
- Rx wavelength (max): 1270 nm
Features
- Product colour: Nickel
Power
- Input voltage: 3.3 V
Certificates
- Compliance certificates: RoHS
- Safety: IEC60825-1
- Certification: MSA, CE
Operational conditions
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
- Width: 10 mm
- Depth: 15 mm
- Height: 60 mm
- Weight: 15 g
Packaging content
- Quantity per pack: 1 pc(s)
