08-10-B127-10XD

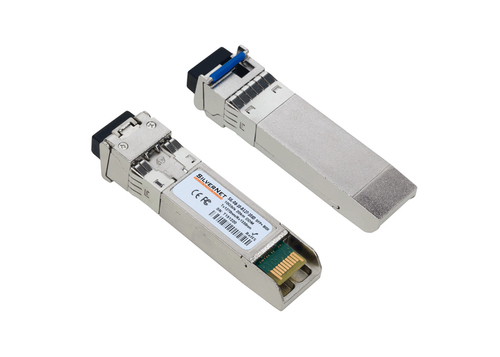

The SIL-08-10-B127-10XD is a 10Gbps Singlemode BiDi (Bi Directional) SFP module.
The SIL-08-10-B127-10XD is a 10Gbps Singlemode BiDi (Bi Directional) SFP module. SilverNet BiDi SFP modules are designed to transmit and receive signals on distinct wavelengths, and thus, they should be acquired in pairs. This allows for the connection of two BiDi SFPs with complementary wavelengths. For instance, if a TX1270/RX1330nm BiDi SFP is used at one end, a TX1330/RX1270nm (SIL-08-10-B133-10XD) BiDi SFP must be used at the opposite end. The SIL-08-10-B127-10XD modules are capable of data rates up to 10Gbps over a distance of up to 10km. They are compliant with the SFP MSA specification and operate from 0~+70°C
Performance
- SFP transceiver type: Fibre optic
- Maximum data transfer rate: 10300 Mbit/s
- Interface type: SFP+
- Fibre optic connector: LC
- Fibre cable diameters supported (core/cladding): 9/125 µm
- Maximum transfer distance: 10000 m
- Tx wavelength (max): 1270 nm
- Rx wavelength (max): 1330 nm
Features
- Product colour: Nickel
Power
- Input voltage: 3.3 V
Certificates
- Compliance certificates: RoHS
- Safety: IEC60825-1
- Certification: MSA, CE
Operational conditions
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
- Width: 10 mm
- Depth: 15 mm
- Height: 60 mm
- Weight: 15 g
Packaging content
- Quantity per pack: 1 pc(s)
