08-10-X850-0-3D

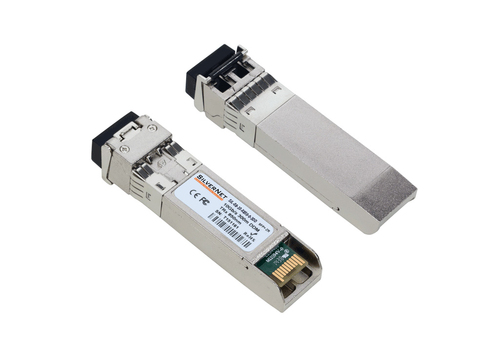

The SIL-SFPX-08-10-X850-0-3D is a 10G Multimode 850nm SFP+ module with a range of up to 300m.
The SIL-SFPX-08-10-X850-0-3D is a 10G Multimode 850nm SFP+ module with a range of up to 300m. It is ideal for use on 10G high capacity networks. They make extending Ethernet over distance easy using the Fibre ports on switches to daisy chain together. They are compliant with the SFP MSA specification and operate from 0~+70°C
Performance
- SFP transceiver type: Fibre optic
- Maximum data transfer rate: 10000 Mbit/s
- Interface type: SFP+
- Fibre optic connector: LC
- Fibre cable diameters supported (core/cladding): 50/125 µm
- Maximum transfer distance: 300 m
- Wavelength: 850 nm
Features
- Product colour: Nickel
Power
- Input voltage: 3.3 V
Certificates
- Compliance certificates: RoHS
- Certification: CE IEC60825-1
Operational conditions
- Operating temperature (T-T): 0 - 70 °C
Operational conditions
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
- Width: 10 mm
- Depth: 15 mm
- Height: 60 mm
- Weight: 15 g
Packaging content
- Quantity per pack: 1 pc(s)
