08-10-X131-02XD

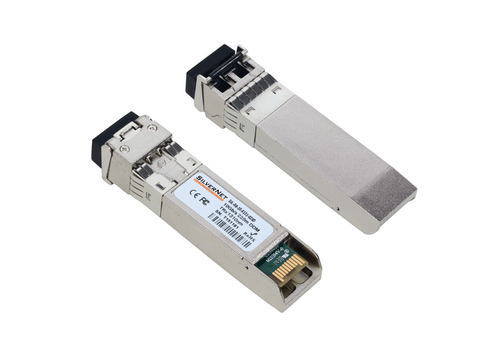

The SIL-SFPX-08-10-X131-02XD is a 10G Singlemode 1310nm SFP+ module capable of reaching up to 2km.
The SIL-SFPX-08-10-X131-02XD is a 10G Singlemode 1310nm SFP+ module capable of reaching up to 2km. It’s perfectly suited for 10G high-capacity networks, simplifying the extension of Ethernet over distances by utilising the Fibre ports on switches for daisy-chaining. These modules adhere to the SFP MSA specifications and function within a temperature range of 0~+70°C.
Performance
- SFP transceiver type: Fibre optic
- Maximum data transfer rate: 10000 Mbit/s
- Interface type: SFP+
- Fibre optic connector: LC
- Fibre cable diameters supported (core/cladding): 9/125 µm
- Maximum transfer distance: 220 m
- Wavelength: 1310 nm
Features
- Product colour: Nickel
Power
- Input voltage: 3.3 V
Certificates
- Compliance certificates: RoHS
- Certification: CE IEC60825-1
Operational conditions
- Operating temperature (T-T): 0 - 70 °C
Operational conditions
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
- Width: 10 mm
- Depth: 15 mm
- Height: 60 mm
- Weight: 15 g
Packaging content
- Quantity per pack: 1 pc(s)
